Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: JXG1045
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
JXG1045 |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
3kw |
Lift Motor Rating At S3 15%: |
5.5kw |
Battery Voltage/rated Capacity: |
24/280V/Ah |
Battery Weight (±5%): |
270kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |
Model Number: |
JXG1045 |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
3kw |
Lift Motor Rating At S3 15%: |
5.5kw |
Battery Voltage/rated Capacity: |
24/280V/Ah |
Battery Weight (±5%): |
270kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |

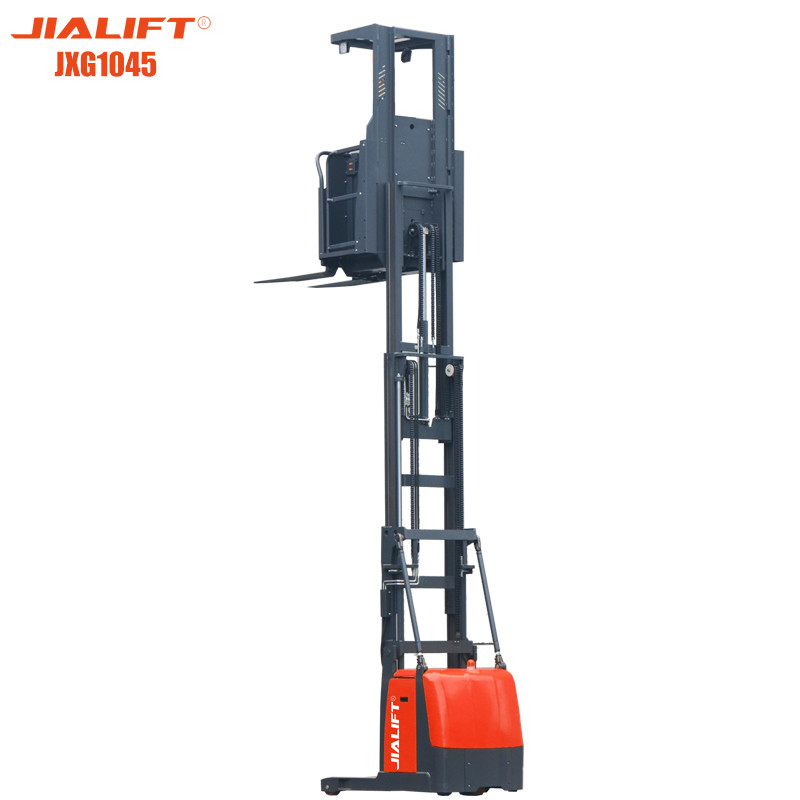

Medium-level Order picker JXG1045 Electric Rated traction weight 1000kg Lift Height 4500mm Picker
Elctric Miudiem and low level Picker JXG1045.pdf
Medium-level Order picker Electric Rated traction weight 1000kg Lift Height 4500mm Picker
Product Features
1.CURTIS AC controller,high power drive,high frequency,high efficiency,quiet,stepless speed regulation and reverse braking function.Perfect temperature protection and compensation function to achieve thermal protectionand stable output;
2.The tilt protection system is configured for high security
3.The side door can be opened,the battery can be pulledout from the side,convenient battery exchange andmaintenance;
4.The operating platform is equipped with intelligent displayfrequency,which can display the rotation direction androtation Angle of the driving wheel in real time,and alsoreport the forklift failure code;
5.Pedal type safety switch to prevent misoperation ofwalking;
6.Equipped with a continuous height sensing controlsystem,which gradually slows down at preset intervals;
7.Comfortable shock absorbing and energy absorbing footpad improves the comfort of drivers;
8.Double door frame design,single forklift convenient totake material.
| Characteristics | ||
| Model | JXG1045 | |
| Power uni | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 1000 |
| Load centre | c(mm) | 400 |
| Axle centre to fork face | x(mm) | 192 |
| Wheel base | y(mm) | 1358 |
| Service weight with battery | kg | 2850 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250x127 |
| Bearing wheel size | Φ×w(mm) | Φ150×82 |
| Wheels,number front/rear(x=driven) | 1,/2 | |
| Track width | b11(mm) | 960 |
| Dimensions | ||
| Height of mast,lowered | h1(mm) | 2365 |
| Lift | h3(mm) | 4500 |
| Height of mast,extended | h4(mm) | 6773 |
| Height of overhead guard (cabin) | h6(mm) | 2273 |
| Height of seat/stand-on platform | h7(mm) | 271 |
| Additional litting | h9(mm) | 780 |
| Total lift (H3+H9) | h10(mm) | 5280 |
| Platform lift height | h12(mm) | 4771 |
| Minimum height of cargo fork | h13(mm) | 50 |
| Picking height (H12+1300) | h15(mm) | 6071 |
| Vehicle length | l1(mm) | 2834 |
| Length to fork face | l2(mm) | 1764 |
| Overall width | b1/b2(mm) | 1000/1150 |
| Fork dimensions | s/e/l(mm) | 40/100/1070 |
| Width of fork fixing frame | b3(mm) | 910 |
| Width ef fork carriage | b5(mm) | 870 |
| Ground clearance at wheelbase center | m2(mm) | 50 |
| Aisle width with pallet 1000x 1200 across forks | Ast(mm) | 3105 |
| Aisle width with pallet 800x1200 along forks | Ast(mm) | 3220 |
| Min.Tuming radius | Wa(mm) | 1570 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.8/6.0 |
| Lilting speed,with/without load(Bridge) | (mm/s) | 140/150 |
| Lilting speed,with/without load(Fork) | (mm/s) | 130/140 |
| Lowering speed,with/without load(Bridge) | (mm/s) | 240/250 |
| Lowering speed,with/without load(Fark) | (mm/s) | 130/95 |
| Climbing ability,with/without load | (%) | 3/6 |
| Sevice brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 3 |
| Lift motor rating at S3 15% | (kW) | 5.5 |
| Battery voltage/rated capacity | (V/Ah) | 24/280 |
| Battery weight (±5%) | (kg) | 270 |
| Other | ||
| Type ol drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤75 |
