Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: JXD20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
JXD20 |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
1.5kw |
Lift Motor Rating At S3 15%: |
0.8w |
Battery Voltage/rated Capacity: |
24/360V/Ah |
Battery Weight (±5%): |
310kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |
Model Number: |
JXD20 |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
1.5kw |
Lift Motor Rating At S3 15%: |
0.8w |
Battery Voltage/rated Capacity: |
24/360V/Ah |
Battery Weight (±5%): |
310kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |

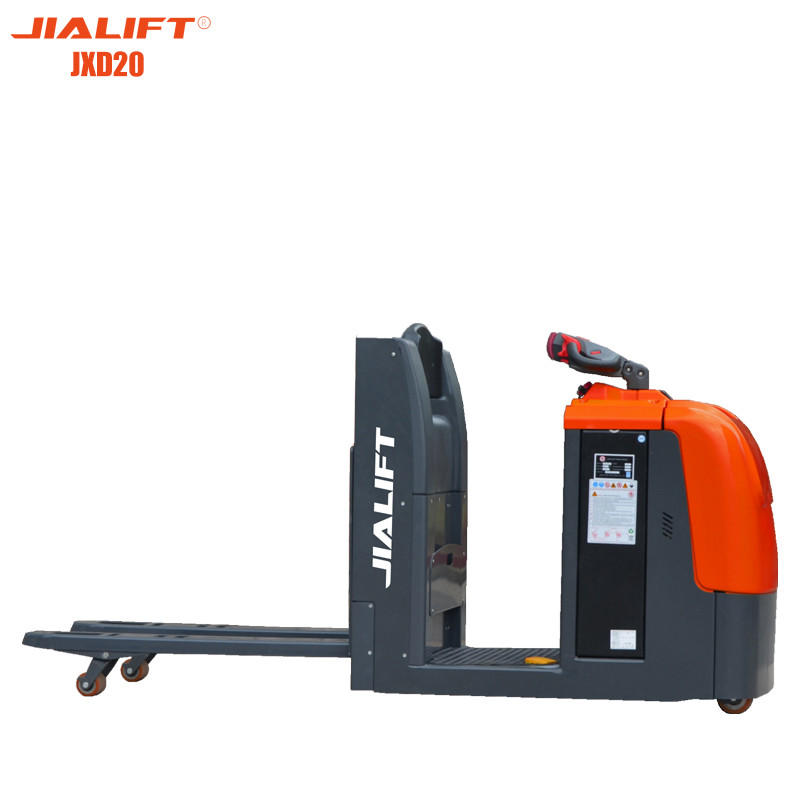

Low-level order picker JXD20 Rated traction weight 2000kg Lift Height 200mm Elctric Miudiem and low level Picker
Elctric Miudiem and low level Picker JXD20.pdf
Low-level order picker Electric Rated traction weight 2000kg Lift Height 200mm Elctric Miudiem and low level Picker
Product Features
1.CURTIS AC controller imported from the original,high power drive,high frequency,high efficiency,quiet,stepless speed regulation and reversebraking function.Perfect temperature protection and compensationfunction to achieve thermal protection and stable output;
2.High quality hydraulic power unit,compact structure,small size,lightweight,high efficiency,no leakage,reliable performance,beautifulappearance,lifting and falling stable and reliable,lifting speed can beadjusted according to user needs;
3.It is equipped with the function of lifting limit.When the fork rises to thetop,the system will automatically cut off the uplink power supply andstop smoothly to effectively prevent the occurrence of "roof falling"accidents.At the same time can reduce energy waste,prolong the life ofhydraulic system and related components;
4.Standard battery side replacement,convenient for long time and multi-shift operation,battery replacement is more convenient and fast,convenient for continuous operation,greatly improve work efficiency;
5.Control elements on both sides of the vehicle can move the picker to thenext position,avoiding the extra steps and delays required to get on andoff the vehicle;
6.The floating bracket is set in the middle of the driving system to ensurethe stability of the vehicle operation,and the body is stable and not tiltedwhen turning;
7.Pedal type safety switch to prevent misoperation of walking;
8.The driving position is set with backrest,spacious driving space and rubber pedal design to improve the comfort of operators;
9.Provide a variety of battery capacity options to ensure the maximum operating time of the vehicle.
| Characteristics | ||
| Model | JXD20 | |
| Power unit | Electnic | |
| Oporation | Standing on | |
| Rated tracfion weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to lork face | x(mm) | 910 |
| Wheel base | y(mm) | 2080 |
| Service weight with battery | kg | 1070 |
| Wheels/Tyres | ||
| Wheets type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ80x70 |
| Additional wheels(dimensions) | Φ×w(mm | Φ115×55 |
| Wheeks,number front/rear (x=driven) | 1,2/4 | |
| Track widih | b10(mm) | 540 |
| Track width | b11 (mm) | 515/370 |
| Dimensions | ||
| Lit | h3 (mm) | 200 |
| Ovemll height | h14(mm) | 1090 |
| Fork Height,Lowered | h13 (mm) | 85 |
| Owerall langth | l1(mm) | 2517 |
| Length to fork tace | l2(mm) | 1367 |
| Overall width | b1/b2 (mm) | 808 |
| Fork dimensions | s/e/l(mm) | 50/170/1150 |
| Width of forks | b5(mm) | 685/540 |
| in.Gmund ciearance | m2(mm) | 25 |
| Aisle widtth with pallet 1000x 1200 across forks | Ast (mm) | 2730 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2780 |
| Min.Tuming radius | Wa(mm) | 2278 |
| Performance | ||
| Travel speod,laden/unladen | (km/h) | 5.2/5.5 |
| LUfting speed,with/without load | (mm/s) | 23/24 |
| Lowering speed,wth/without load | (mm/s) | 30/20 |
| Maximum dimbing ability,with/without load | (%) | 3/6 |
| Sarvice brake | Electromagnetic | |
| Drive | ||
| Drve motor,60 minute rating | (kW) | 1.5 |
| Litt motor rating at S3 15% | (kW) | 0.8 |
| Battery voltagv/rated capacity | (V/Ah) | 24/360 |
| Battery weight (±5%) | (kg) | 310 |
| Other | ||
| Type of drive control | AC | |
| Noise lovel at oporator's ear | (dB(A)) | ≤75 |
