Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: E1630A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
E1630A |
Load Capacity: |
1600kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
6.5kw |
Lift Motor Rating At S3 15%: |
7kw |
Battery Voltage/rated Capacity: |
48/385V/Ah |
Battery Weight(±5%): |
635kg |
Noise Level At Operator 's Ear: |
≤70dB(A) |
Model Number: |
E1630A |
Load Capacity: |
1600kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
6.5kw |
Lift Motor Rating At S3 15%: |
7kw |
Battery Voltage/rated Capacity: |
48/385V/Ah |
Battery Weight(±5%): |
635kg |
Noise Level At Operator 's Ear: |
≤70dB(A) |

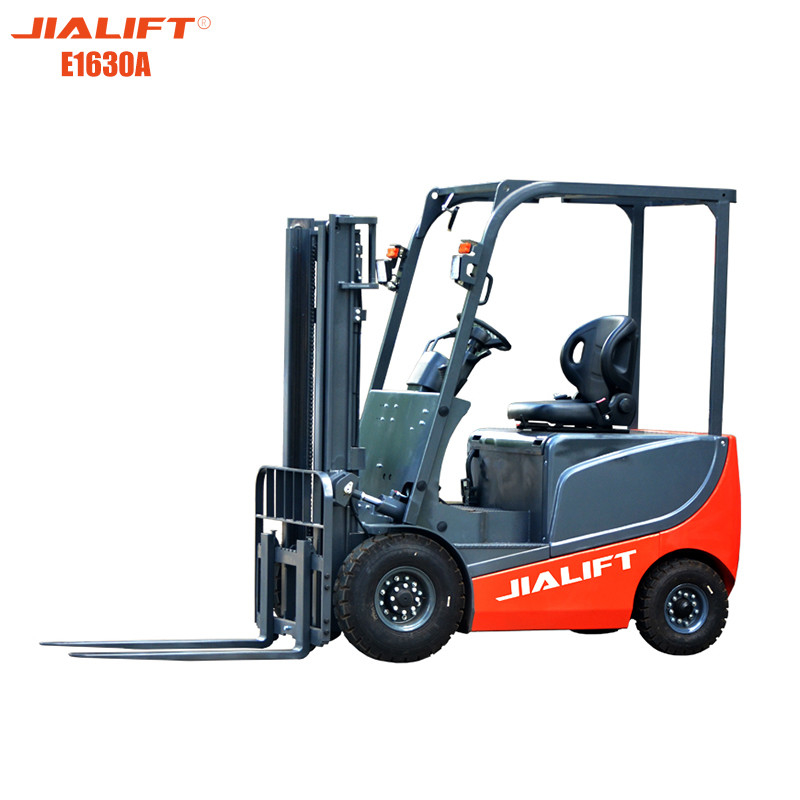

Electric Balance Forklift E1630A&E1830A&E2030A&E25...
Electric counterbalanced forklift truck(Seated on) Rated load capacity 1600kg Lifting height 3000mm Electric
Product Features
1.Small size,light weight,suitable for narrow passage,with high lifting,high load,small turning radius and so on;
2.Buffer lifting cylinder,when the cargo falls close to the ground,the cylinder throttle down,increasing the safety of operation;
3.Adjustable steering wheel and seat,can meet the needs of different operators,choose the best operation position
4.New headlamp design,beautiful and firm,more freely operate in poor light environment,improve the safety of night work;
5.Emergency power off switch is installed on the right side of the seat,so that the driver can cut off the power supply in the shortest time;
6.Equipped with voice reversing alarm,the vehicle in reverse driving voice alarm,clear sound,stable work,remind the working area around the staff pay attention to safety;
7.The fire extinguisher bracket is set on the left rear column of the roof guard frame to avoid obstructing the line of sight of the rear view mirror.The fire Extinguisher position is easy to access,prompting users to configure fire extinguishers,improving fire awareness,and protecting the safety of life and property.
| Characteristics | ||
| Model | E1630A | |
| Power unit | Electric | |
| Operation | Seated on | |
| Rated traction weight | Q(kg) | 1600 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 411 |
| Wheel base | y(mm) | 1410 |
| Service weight with battery | kg | 2750 |
| Wheels/Tyres | ||
| Wheels type | Pneumatic/Solid | |
| Driving wheel size | 6.5-10-10PR | |
| Bearing wheel size | 5.0-8-14PR | |
| Wheels,number front/rear (x = driven) | 2×/2 | |
| Track width | b10(mm) | 890 |
| Track width | b11(mm) | 920 |
| Dimensions | ||
| Mast/fork carriage tilt, forward/backward | a/b(°) | 6/10 |
| Height of mast, lowered | h1(mm) | 2000 |
| Free lift | h2(mm) | 135 |
| Lift | h3(mm) | 3000 |
| Height of mast, extended | h4(mm) | 3815 |
| Height of overhead guard (cabin) | h6(mm) | 2198 |
| Height of seat/stand-on platform | h7(mm) | 1195 |
| Towing coupling height | h10(mm) | 352 |
| Overall length | l1(mm) | 3120 |
| Length to fork face | l2(mm) | 2170 |
| Overall width | b1/b2(mm) | 1080 |
| Fork dimensions | s/e/l(mm) | 35/100/950 |
| Width of fork carriage | b3(mm) | 920 |
| Width of forks | m1(mm) | 115 |
| Min.Ground clearance | m2(mm) | 125 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 4190 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 4225 |
| Min. Turning radius | Wa(mm) | 2080 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 12/13 |
| Lifting speed, with/without load | (mm/s) | 250/400 |
| Lowering speed, with/without load | (mm/s) | 240/258 |
| Climbing ability, with/without load | (%) | 12/15 |
| Service brake | Hydraulic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 6.5 |
| Lift motor rating at S3 15% | (kW) | 7 |
| Battery voltage/rated capacity | (V/Ah) | 48/385 |
| Battery weight(± 5%) | (kg) | 635 |
| Power consumption according to VDI cycle | (mm) | 765/650/500 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Hydraulic |
