Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: CL2030GF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
CL2030GF |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
1.5kw |
Lift Motor Rating At S3 15%: |
3.0kw |
Battery Voltage/rated Capacity: |
24/210 V/Ah |
Battery Weight(±5%): |
195kg |
Noise Level At Operator's Ear: |
≤70dB(A) |
Model Number: |
CL2030GF |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
1.5kw |
Lift Motor Rating At S3 15%: |
3.0kw |
Battery Voltage/rated Capacity: |
24/210 V/Ah |
Battery Weight(±5%): |
195kg |
Noise Level At Operator's Ear: |
≤70dB(A) |

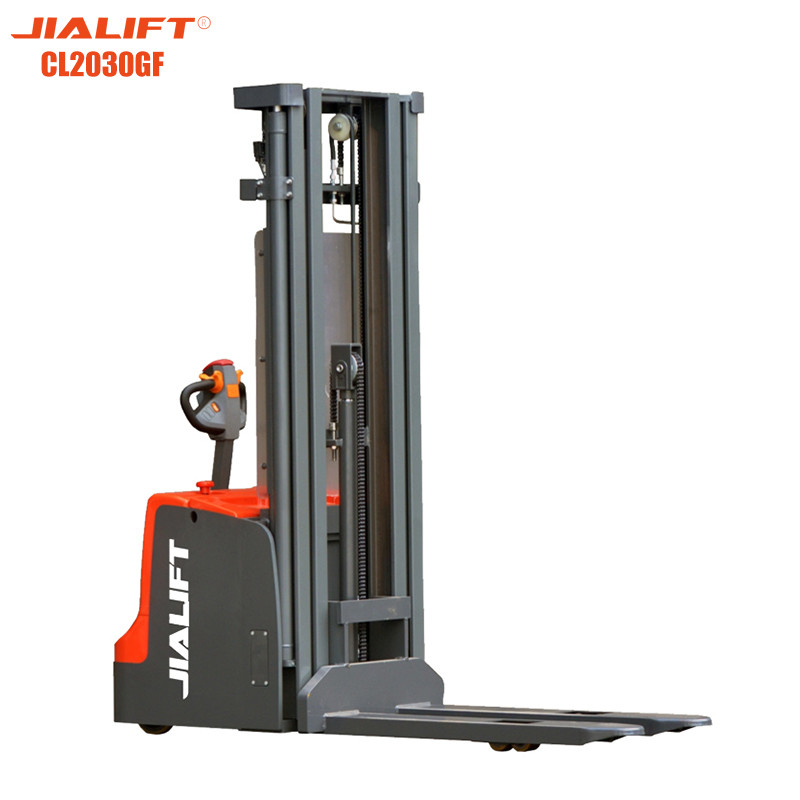

Electric stacker(Pedestrian) CL2030GF Rated traction weight 2000kg Lifting height 3000mm Electric Reach Stacker
Electric Reach Stacker CL2030GF.pdf
Electric stacker(Pedestrian) CL2030GF Rated traction weight 2000kg Lifting height 3000mm Electric Reach Stacker
Product Features
1.Powerful AC motor,plus.Avolve gearbox providessuperior acceleration performance,improves workefficiency,and saves energy;
2.Imported AC controller,high power MOSFETS driver,high frequency,efficient,quiet,has stepless speedregulation and anti-warming function.Improvedtemperature protection and compensation functionsto achieve thermal protection and stable output;
3.Key switch and electric meter,horn,up and downbutton,turtle speed switch are integrated in theoperation handle,easy to operate;
4.Operation handle is a long-term design of walkingvehicles,in line with ergonomic principles,comfortable operation;
5.Side driving driver design,effectively reducing jobchannels,small turn radius,better field of view,suitable for narrow space operations.
| Characteristics | ||
| Model | CL2030GF | |
| Power uni | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 672 |
| Wheel base | y(mm) | 1384 |
| Service weight with battery | kg | 966 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ230×75 |
| Bearing wheel size | Φ×w(mm) | Φ80x70 |
| additional wheels (dimensions) | Φ×w(mm) | Φ150×58 |
| Wheels,number front/rear (x=driven) | 1x+1/4 | |
| Track width | b10(mm) | 526 |
| Track width | b11(mm) | 390/515 |
| Dimensions | ||
| Free lift | h1(mm | 1991 |
| Lift | h2 (mm) | 166 |
| Height ol mast,extended | h3 (mm) | 3000 |
| Height of seat/stand-on platform | h4(mm) | 3408 |
| Overall height(With handle | h14(mm) | 870/1200 |
| Lowered fork height | h13(mm) | 86 |
| Overall length | l1(mm) | 2022 |
| Length to fork face | l2(mm) | 872 |
| Overall width | b1/b2(mm) | 795 |
| Fork dimensions | s/e/l (mm) | 60/180/1150 |
| Width of lorks | b5(mm) | 570/695 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2435 |
| Aisle width with pallet 800x1200 along forks | Ast(mm) | 2412 |
| Min.Turning radius | Wa(mm) | 1550 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed,with/without load | (mm/s) | 80/210 |
| Lowering speed,with/without load | (mm/s) | 152/160 |
| Maximum climbing ability,with/without koad | (%) | 4/10 |
| Service brake | Elactromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 3.0 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 195 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical steering |
