Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: CL2025GC
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
CL2025GC |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
2.5kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
24/210 V/Ah |
Battery Weight(±5%): |
190kg |
Noise Level At Operator's Ear: |
≤70dB(A) |
Model Number: |
CL2025GC |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
2.5kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
24/210 V/Ah |
Battery Weight(±5%): |
190kg |
Noise Level At Operator's Ear: |
≤70dB(A) |
Electric Reach Stacker CL-GC.pdf

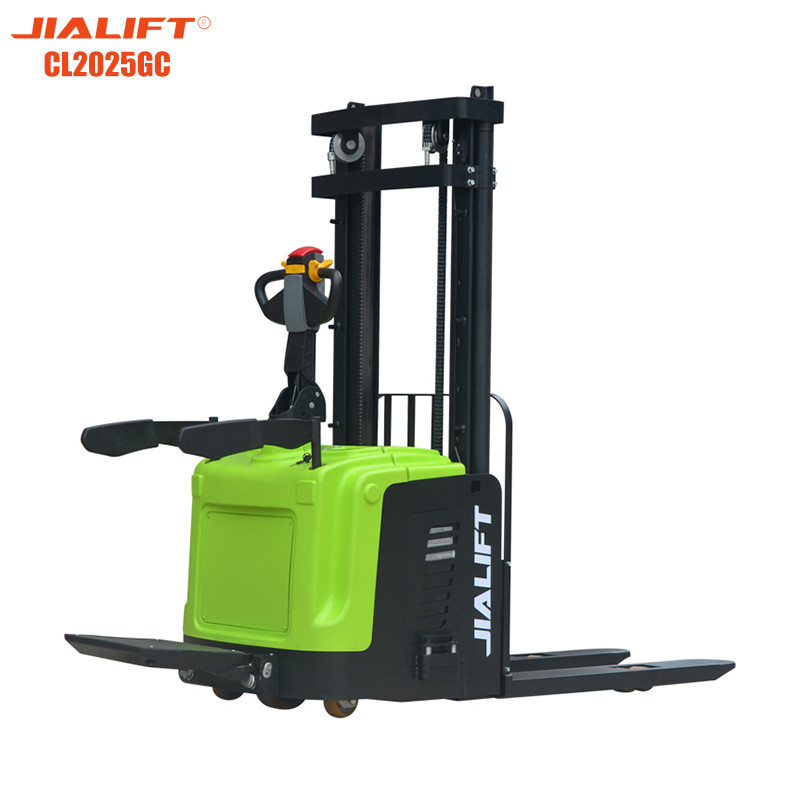

Electric double-lifting stacker CL2025GC Rated traction weight 2000kg Lifting height 2530mm Electric Reach Stacker
Product Features
1.Advanced vertical AC drive system,motor can get more energy and greater brake torque,power is morepowerful,acceleration performance is better;
2.All-system standard electronic power steeringsystem,helping to respond very sensitive to thehandle manipulation department;
3.Double lifting design,can carry two pallets at thesame time,and there is a function of stacker;
4.Configure boost red,fast speed,large output,lowenergy consumption,prevent the slippage whenheavy load:
5.Because there is a lifting car leg,it can overcome theramp,unlatted ground or other obstacles than thestacked car;
6.Standard the boost limit function,when the fork risesto the top,the system automatically cuts off the uplinkpower supply,smooth parking,effectively prevents the occurrence of "the top 'accident.
| Charactenistics | ||
| Model | CL2025GC | |
| Power unit | Electric | |
| Operation | Standing on | |
| Ratod traction weight | Q(kg) | 2000 |
| Load capacity of the mast | Q(kg) | 1200 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 848 |
| Wheel base | y(mm) | 1472 |
| Service weight with battery | kg | 1105 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ480×70 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ115×55 |
| Wheels,number front/rear (x =drven) | 1x,2/4 | |
| Track widith | b10(mm) | 580 |
| Track width | b11(mm) | 505/390 |
| Dimensions | ||
| Free lift | h1(mm) | 1799 |
| Lift | h2 (mm) | 0 |
| Height of mast,extended | h3 (mm) | 2530 |
| Height of seat/stand-on platform | h4(mm) | 2943 |
| The initial boost | h5 (mm) | 120 |
| Overall height(With handle) | h14(mm) | 1065/1365 |
| Lowered fork height | h13(mm) | 90 |
| Overall length | l1(mm) | 2000 |
| Length to fork face | l2(mm) | 850 |
| Overall width | b1/b2 (mm) | 808 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Width of forks | b5(mm) | 685/570 |
| Min.Ground clearance | m2(mm) | 28 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 2530 |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 2443 |
| Min.Turning radius | Wa (mm) | 1710 |
| Performance | ||
| Travel speed,with/without load | (km/h) | 5.2/5.5 |
| Lilting speed,with/without load | (mm/s) | 100/130 |
| Lowering speed,with/wthout load | (mm/s) | 180/140 |
| Maximum clmbing ablity,with/wihout load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute raling | (kW) | 2.5 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 190 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
