Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: CL1030J
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
CL1030J |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100 V/Ah |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator's Ear: |
≤70dB(A) |
Model Number: |
CL1030J |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100 V/Ah |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator's Ear: |
≤70dB(A) |

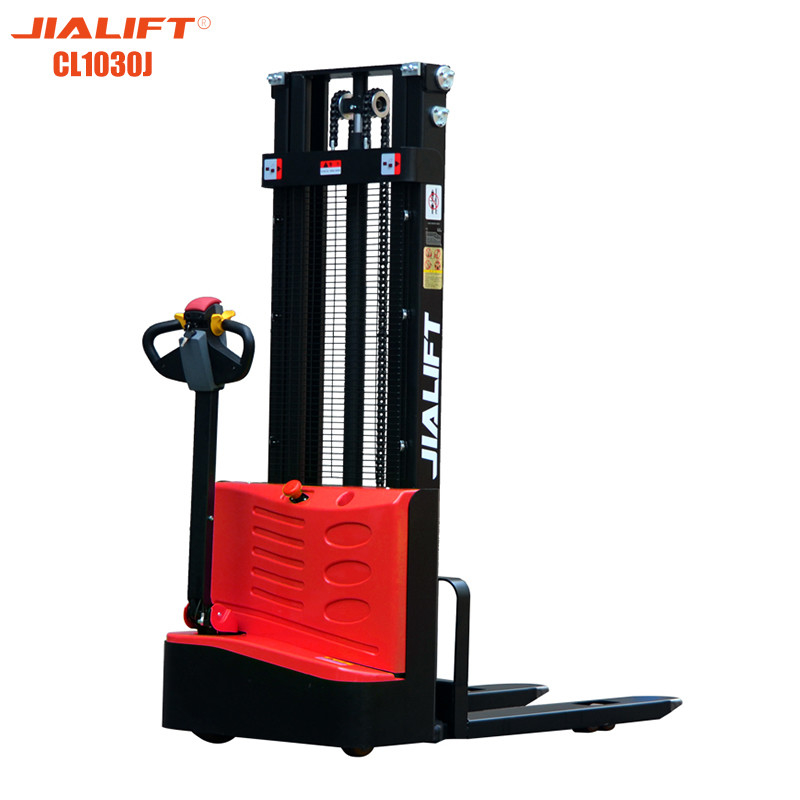

Electric stacker(Pedestrian) CL1030J Rated traction weight 1000kg Lifting height 3000mm Electric Reach Stacker
Electric Reach Stacker CL1030J&CL1016D.pdf
Electric stacker(Pedestrian) CL1030J Rated traction weight 1000kg Lifting height 3000mm Electric Reach Stacker
Product Features
1.Side driving driver design, effectively reducing the work channel, small turning radius, better field of view, suitable for narrow space operations.
2.The operating handle is a walking vehicle, which is in line with the principle of ergonomics, and is comfortable.
3.Key switch, electric meter, up and down button, turtle speed switch are integrated in the operation handle, easy to operate.
4.External charger, heat dissipation performance, avoiding the damage caused by the built-in charger due to vibration when the vehicle is running.
5.Germany imported waterproof micro-power switch, adapt to cold, moist, dust, etc.
6.Permanent magnet motor drive system, small size,light quality, small loss, high efficiency.
7.Install high-density wire protective net, prepared,strong and durable, and excellent protection.
| Characteristics | ||
| Model | CL1030J | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 1000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 780 |
| Wheel base | y(mm) | 1230 |
| Service weight with battery | kg | 465 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ210×70 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels(d imensions) | Φ×w(mm) | Φ150×58 |
| Wheels, number front/rear (x = driven) | 1x+1/4 | |
| Track width | b10(mm) | 516 |
| Track width | b11(mm) | 410/535 |
| Dimensions | ||
| Free lift | h1(mm) | 1995 |
| Lift | h2(mm) | 0 |
| Height of mast, extended | h3(mm) | 3000 |
| Height of seat/stand-on platform | h4(mm) | 3452 |
| Overall height(With handle) | h14(mm) | 870/1200 |
| Lowered fork height | h13(mm) | 86 |
| Overall length | l1(mm) | 1755 |
| Length to fork face | l2(mm) | 605 |
| Overall width | b1/b2(mm) | 795 |
| Fork dimensions | s/e/l(mm) | 60/160/1150 |
| Width of forks | b5(mm) | 570/695 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 2245 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 2185 |
| Min.Turning radius | Wa(mm) | 1405 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed, with/without load | (mm/s) | 92/136 |
| Lowering speed, with/without load | (mm/s) | 112/98 |
| Maximum climbing ability, with/without load | (%) | 3/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor, 60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight(± 5%) | (kg) | 2×27 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
