Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: CL1335GHY
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
CL1335GHY |
Load Capacity: |
1300kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100 V/Ah |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator's Ear: |
≤70dB(A) |
Model Number: |
CL1335GHY |
Load Capacity: |
1300kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100 V/Ah |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator's Ear: |
≤70dB(A) |

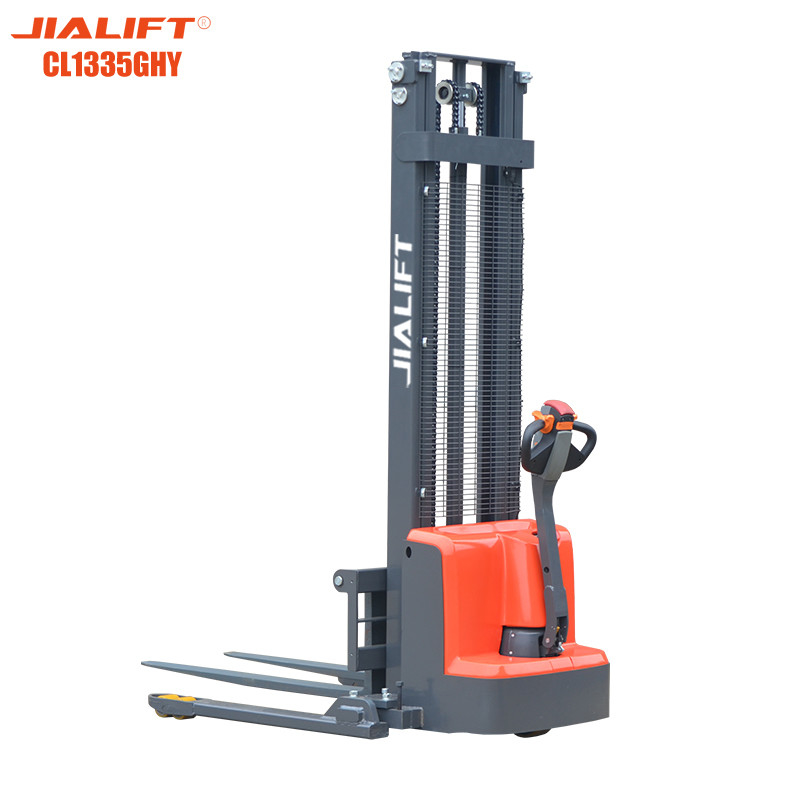

Electric stacker(Pedestrian,with Straddle) CL1335GHY Rated traction weight 1300kg Lifting height 3500mm Reach Stacker
Electric Reach Stacker CL-GHY.pdf
Electric stacker(Pedestrian,with Straddle) CL1335GHY Rated traction weight 1300kg Lifting height 3500mm Reach Stacker
Product Features
1.Setting up a reinforcing rib between the inside and
outside portraits,ensuring that the door frame does notpour it forward,and the stability of the vehicle is better;
2.Germany imported waterproof micro-power switch,adaptto cold,moist,dust and other harsh environments;
3.Key switch,electric meter,up and down button,turtlespeed switch are integrated in the operation handle,easyto operate;
4.Operate handles Configure high quality air pressurespring,loosen the handle,automatically reset,durable;
5.Operating handles are long-range vehicles,in line withergonomic principles,comfortable operation;
6.The middle drive design effectively prevents the drivingwheel from skidding;
7.Maintenance-free batteries do not need to be replacedwith other tools,more convenient;
8.Adjustable wide leg design,suitable for a variety of palletsizes,more stable.
| Characteristics | ||
| Model | CL1335GHY | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(t) | 1.3 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 698 |
| Wheel base | y(mm) | 1202 |
| Service weight with battery | kg | 670 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ210x70 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| Wheels,number front/rear (x=driven) | 1x+0/4 | |
| Track width | b11(mm) | 1024-1424 |
| Dimensions | ||
| Height of mast,lowered | h1(mm) | 2330 |
| Lift | h3(mm) | 3500 |
| Height of mast,extended | h4(mm) | 4049 |
| Overall height(With handle) | h14(mm) | 680/1165 |
| lowered hength | h13(mm) | 65 |
| Overall length | l1(mm) | 1818 |
| Length to fork face | l2 (mm) | 668 |
| Overall width | b1/b2(mm) | 1148-1548 |
| Fork dimensions | s/e/l(mm) | 35/100/1150 |
| Width of forks | b5(mm) | 210-850 |
| Min.Ground clearance | m2(mm) | 26 |
| Aisle width with pallet 1000x 1200 across forks | Ast(mm) | 2240 |
| Aisle width with pallet 800x1200 along lorks | Ast(mm) | 2210 |
| Min.Turning radius | Wa(mm) | 1370 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed,with/without load | (mm/s) | 92/136 |
| Lowering speed,with/without load | (mm/s) | 112/98 |
| Maximum climbing ability,with/without load | (%) | 3/8 |
| Seiyice bake | Electromagnetic | |
| Drive | ||
| Drive motor,60minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight (±5%) | (kg) | 2×27 |
| Other | ||
| Type of drive cantrol | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
