Zhejiang Jialift Warehouse Equipment Co., Ltd. leoforklifts@gmail.com 86--15618055399
Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: T30
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
T30 |
Load Capacity: |
3000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
3kw |
Battery Voltage/Battery Capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Type Of Steering: |
Electric |
Noiselevel At Operator 's Ear: |
≤70dB(A) |
Model Number: |
T30 |
Load Capacity: |
3000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
3kw |
Battery Voltage/Battery Capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Type Of Steering: |
Electric |
Noiselevel At Operator 's Ear: |
≤70dB(A) |

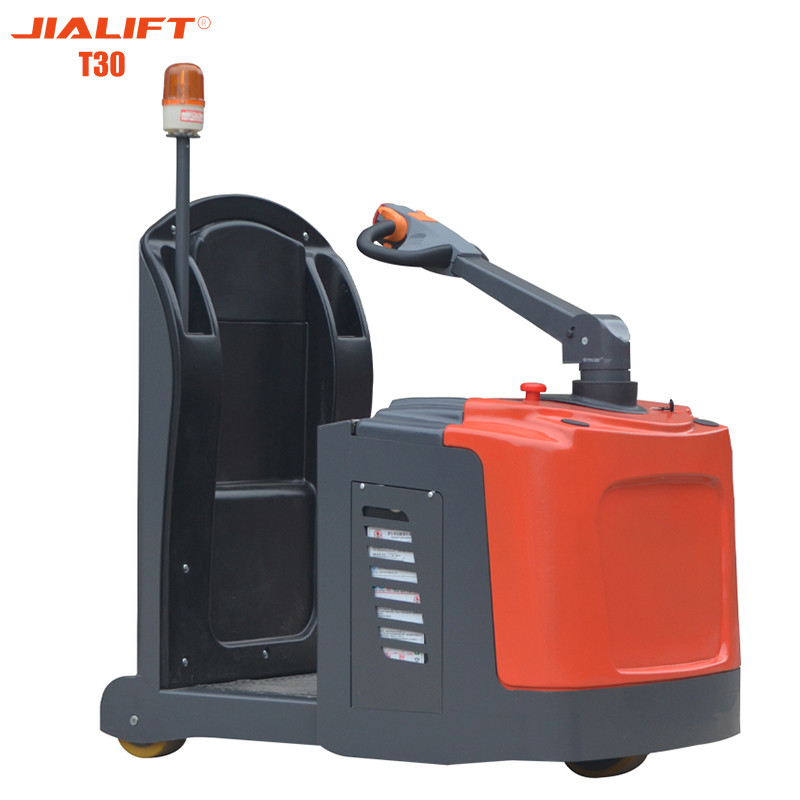

Tow tractor(Standing on) T30 Electric Rated traction weight 3000kg Max.pulling power 2000N Electric Tow Tractor
Tow tractor(Standing on) Electric Rated traction weight 3000kg Max.pulling power 2000N Electric Tow Tractor
Product Features
1.The whole vehicle design is compact,thetransmission is stable,the shape is small,and theturn radius is small;
2.The electric switch on the left side of the vehiclebody has a dot dynamic function,and theoperating efficiency is high;
3.The back cover is convenient to disassemble,andthe components are convenient to repair andreplacement of components;
4.The new communication power system providespowerful power,more accurate speed controlperformance and various regenerative functions,more operation Safe and reliable;
5.Side pull battery box design,easy to replace thebattery,convenient for continuous operation.
| Characteristics | ||
| Model | T30 | |
| Power unit | Electric | |
| Operation | Standingon | |
| Hated traction weight | Q(kg) | 3000 |
| Wheel base | y(mm) | 1038 |
| Service weight with battery | kg | 768 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | (mm) | Φ250x75 |
| Bearing wheel size | (mm) | Φ180x76 |
| Wheels,number front/rear (x=driven) | 2/1x | |
| Track width | b11(mm) | 618 |
| Dimensions | ||
| Coupler height | h10(mm | 233/328/343/438 |
| Overall length | l1(mm) | 1395 |
| Overall width | b1/b2(mm) | 808 |
| Min.Ground clearance | m2(mm) | 65 |
| Min.Turning radius | Wa(mm) | 1242 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 6/7 |
| Rated pulling power | N | 600 |
| Max.pulling power | N | 2000 |
| Gradeability.laden/unladen | 0 | 3/15 |
| Brake | Electromagnetic | |
| Drive | ||
| Dye motor | kW | 3 |
| Battery voltage/Battery capacity | V/Ah | 24/210 |
| Battery weight (±5%) | kg | 190 |
| Other | ||
| Type of drive control | AC | |
| Type of steering | Electric | |
| Noiselevel at operator 's ear | dB(A) | ≤70 |
| Traction coupling according to DIN15170 type | Bolt |
