Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: TW10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
TW10 |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
0.4kw |
Battery Voltage/Battery Capacity: |
24/32V/Ah |
Battery Weight (±5%): |
19.6kg |
Noiselevel At Operator 's Ear: |
≤70dB(A) |
Type Of Drive Control: |
AC |
Model Number: |
TW10 |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
0.4kw |
Battery Voltage/Battery Capacity: |
24/32V/Ah |
Battery Weight (±5%): |
19.6kg |
Noiselevel At Operator 's Ear: |
≤70dB(A) |
Type Of Drive Control: |
AC |

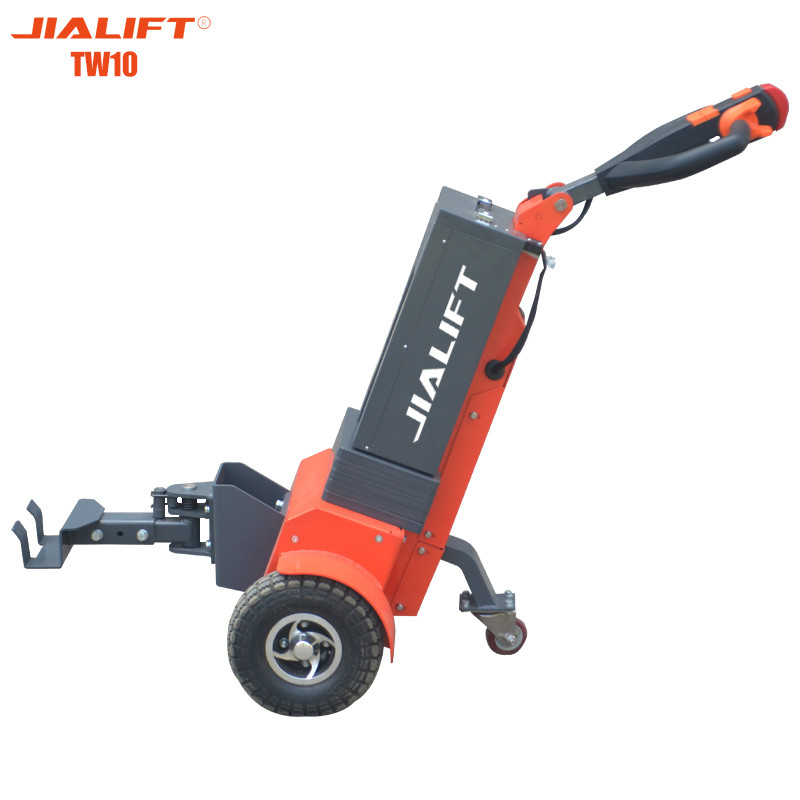

Tow tractor(Pedestrian) TW10 Electric Rated traction weight 1000kg Max.pulling power 600N Electric Tow Tractor
Tow tractor(Pedestrian) Electric Rated traction weight 1000kg Max.pulling power 600N Electric Tow Tractor
Product Features
1.The whole vehicle design is compact,thetransmission is stable,the shape is small,and theturn radius is small;
2.The electric switch on the left side of the vehiclebody has a dot dynamic function,and theoperating efficiency is high;
3.The back cover is convenient to disassemble,andthe components are convenient to repair andreplacement of components;
4.The new communication power system providespowerful power,more accurate speed controlperformance and various regenerative functions,more operation Safe and reliable;
5.Side pull battery box design,easy to replace thebattery,convenient for continuous operation.
| Characteristics | ||
| Model | TW10 | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Hated traction weight | Q(kg) | 1000 |
| Rated pulling power | F(N) | 200 |
| Wheel base | y(mm) | 321 |
| Service weight with battery | kg | 116 |
| Wheels/Tyres | ||
| Wheels type | Rubber wheel | |
| Driving wheel size | Φ×w(mm) | Φ254×85 |
| Bearing wheel size | Φ×w(mm) | Φ75x32 |
| Before the wheel track | b10(mm) | 441 |
| Dimensions | ||
| Overall height(With handle) | h14(mm) | 912/1155 |
| Coupler height | h10(mm | 275/310/340 |
| Overall length | l1(mm) | 1184 |
| Overall width | b1/b2(mm) | 526 |
| Min.Ground clearance | m2(mm) | 67 |
| Min.Turning radius | Wa(mm) | 850/902/916 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 3.8/4.2 |
| Max.pulling power | N | 600 |
| Gradeability.laden/unladen | % | 3/10 |
| Brake | Electromagnetic | |
| Drive | ||
| Dye motor | kW | 0.4 |
| Battery voltage/Battery capacity | V/Ah | 24/32 |
| Battery weight (±5%) | kg | 19.6 |
| Other | ||
| Type of drive control | AC | |
| Noiselevel at operator 's ear | dB(A) | ≤70 |
