Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SL20L3
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SL20L3 |
Load Capacity: |
2000kg |
Battery: |
Li-lon |
Drive Motor Power: |
0.75kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/capacity: |
24/60 V/Ah |
Battery Weight (±5%): |
13.2KG |
Drive Control Type: |
DC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |
Model Number: |
SL20L3 |
Load Capacity: |
2000kg |
Battery: |
Li-lon |
Drive Motor Power: |
0.75kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/capacity: |
24/60 V/Ah |
Battery Weight (±5%): |
13.2KG |
Drive Control Type: |
DC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |

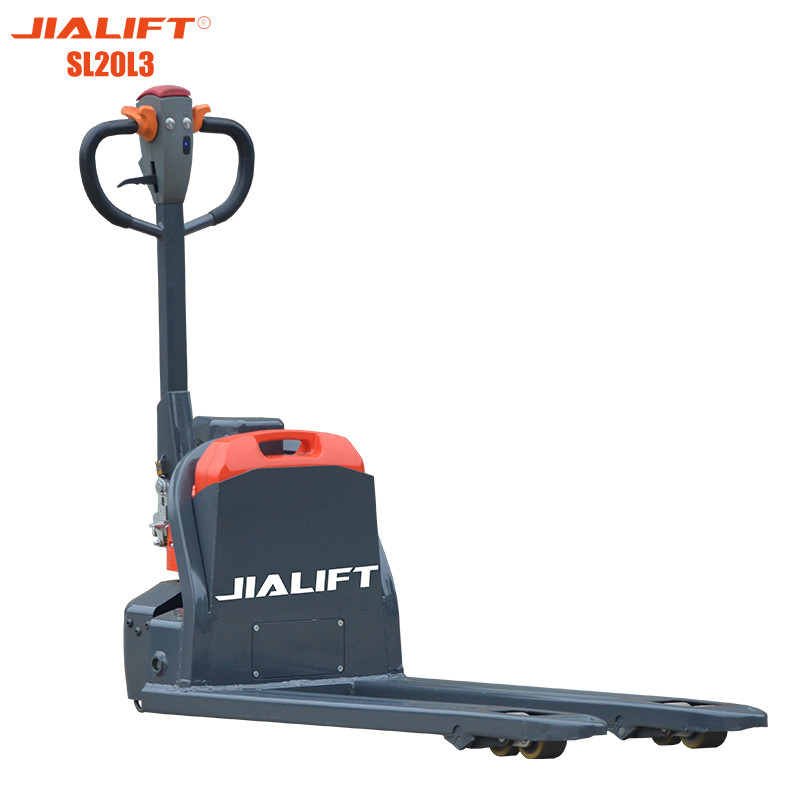

Electric pallet truck(Pedestrian) SL20L3 Rated traction weight 2000kg Lifting height 200mm
Electric Pallet Truck SL15L3&SL20L3.pdf
Electric pallet truck(Pedestrian) Rated traction weight 1500kg Lifting height 200mm
Product Features
1.The vehicle is simple,dexterous, reliable and easy tooperate.Compact structure,small turning radius.Smallweight,can be used in freight elevator.Low noise, highperformance;
2.Reasonable structure design, so that the machine has astrong skeleton structure, while maintaining a lightweight.Fully open design, convenient for usermaintenance and maintenance:
3.The whole machine adopts open design, easy todisassemble and replace the battery. When the batteryisexhausted,anotherset of batteries can be quicklyreplaced(optional),effectively extending the workingtime of double;
4.Reverse collision-proofswitch.dual quarantee ofelectromagnetic braking and motor braking is adopted fordriving braking, which fully considers the operator'sdriving safety;
5.The design of operating handle, electric lifting function,saving the operator's physical strength, manualdescending function, by pulling the handle Angle toadiustthe descending speed;
6.The sturdy metal cover protects the motor and wheels.while also reliably protecting the operator's feet forincreased safety.
| Characteristics | ||||
| Model | SL20L3 | |||
| Power unit | Electric | |||
| Operation | Pedestrian | |||
| Rated traction weight | Q(kg) | 2000 | ||
| Load centre | c(mm) | 600 | ||
| Axle centre to fork face | x(mm) | 944 | ||
| Wheel base | y(mm) | 1243 | ||
| Service weight with battery | kg | 146 | ||
| Wheels/Tyres | ||||
| Wheels type | 聚氨酯(PU) | |||
| Driving wheel size | Φ×w(mm) | Φ210×70 | ||
| Bearing wheel size | Φ×w(mm) | Φ80×60 | ||
| Wheels,number front/rear (x =driven) | 1x/4 | |||
| Track width | b11 (mm) | 410/535 | ||
| Dimensions | ||||
| Lift | h3 (mm) | 200 | ||
| Overall height(With handle) | h14 (mm) | 740/1160 | ||
| Lowered hength | h13 (mm) | 85 | ||
| Overall length | l1 (mm) | 1603 | ||
| Length to fork face | l2 (mm) | 453 | ||
| Overall width | b1/b2(mm) | 550/685 | ||
| Fork dimensions | s/e/l (mm) | 50/150/1150 | ||
| Width of forks | b5 (mm) | 550/685 | ||
| Min.Ground clearance | m2 (mm) | 35 | ||
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 1804 | ||
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 1854 | ||
| Min.Turning radius | Wa (mm) | 1398 | ||
| Performance | ||||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 | ||
| Maximum climbing ability,with/without load | (%) | 5/10 | ||
| Service brake | Electromagnetic | |||
| Drive | ||||
| Drive motor,60 minute rating | (kW) | 0.75 | ||
| Lift motor rating at S3 15% | (kW) | 0.8 | ||
| Battery voltage/rated capacity | (V/Ah) | 24/60 | 48/20 | 48/30 |
| Battery weight (±5%) | (kg) | 13.2 | 10.2 | 13.2 |
| Other | ||||
| Type of drive control | DC | |||
| Noise level at operator's ear | (dB(A)) | ≤70 | ||
| Type of steering | Mechanical | |||
