Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SL20GH
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SL20GH |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
0.75kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
2×12/100V/Ah |
Battery Weight (±5%): |
54 |
Drive Control Type: |
DC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |
Model Number: |
SL20GH |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
0.75kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
2×12/100V/Ah |
Battery Weight (±5%): |
54 |
Drive Control Type: |
DC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |

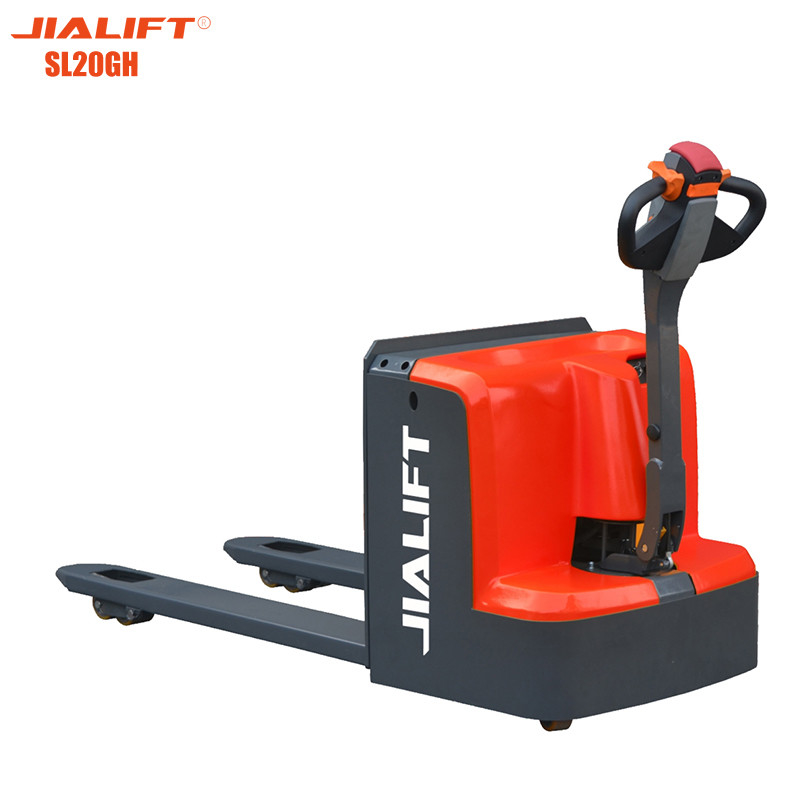

Electric pallet truck(Pedestrian) SL20GH Rated traction weight 2000kg Lifting height 200mm Electric Pallet Haul
Electric Pallet Truck SL20GH&SL20GHS.pdf
Electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm Electric Pallet Haul
Product Features
1.The vehicle is simple, agile, stable and easy tooperate.Compact structure, small turning radius.Low noise, high performance.
2.The auxiliary wheels on both sides increase thedriving stability and are standard equipped withthe function of lifting power limit. When the forksrise to the top, the system will automatically cut offthe lifting power and stop the car smoothly.
3.The operation handle is lengthened design forwalking vehicle, which conforms to ergonomicprinciple and is comfortable to operate.
4.The front panel of the body box is equipped withopening device, which can quickly check thefaults of the oil cylinder and oil pipe.
| Characteristics | ||
| Model | SL20GH | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 931 |
| Wheel base | y(mm) | 1324 |
| Service weight with battery | kg | 333 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ210×70 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ100×40 |
| Wheels,number front/rear (x =driven) | 1x+2/4 | |
| Track width | b11(mm) | 380/525 |
| Dimensions | ||
| Lift | h3(mm) | 200 |
| Overall height(With handle) | h14(mm) | 730/1165 |
| Fork Height,Lowered | h13(mm) | 85 |
| Overall length | l1(mm) | 1708 |
| Length to fork face | l2 (mm) | 558 |
| Overall width | b1/b2(mm) | 700 |
| Fork dimensions | s/e/l (mm) | 50/160/1150 |
| Width of forks | b5(mm) | 540/685 |
| Min.Ground clearance | m2(mm) | 35 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 1909 |
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 1959 |
| Min.Turning radius | Wa(mm) | 1490 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| Lifting speed,with/without load | (mm/s) | 20/26 |
| Lowering speed,with/without load | (mm/s) | 33/21 |
| Maximum climbing ability,with/without load | (%) | 3/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight (±5%) | (kg) | 54 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
