Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: E0530JZ
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
E0530JZ |
Load Capacity: |
500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100(V/Ah) |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator 's Ear: |
≤70(dB(A)) |
Model Number: |
E0530JZ |
Load Capacity: |
500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100(V/Ah) |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator 's Ear: |
≤70(dB(A)) |
Electric Balance Forklift E0530JZ&E0730JZ.pdf

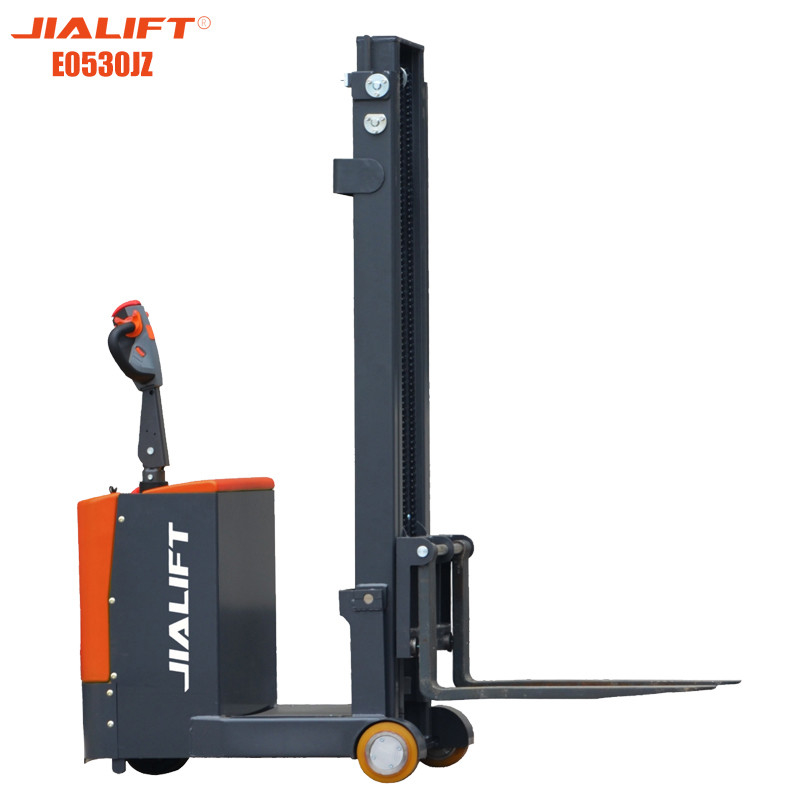

Electric Counterbanlanced Stacker(Pedestrian) E0530JZ Rated load capacity 500kg Lifting height 3000mm
Product Features
1.Super-small body,small turning radius,suitable
for all kinds of small space;
2.Although it is an economical balancing weight,it isstill equipped with high power and highperformance lifting pump station,which makes thegoods lifting balanced and powerful,cheap andgood quality,excellent quality and reasonableprice;
3.Standard emergency stop switch,when thevehicle is in danger,press the emergency stopswitch can cut off the power supply,the vehiclestops running,to protect the safety of the operatorand equipment;
4.Foldable pedal and arm guard are optional forlong time work.
| Characteristics | ||
| Model | E0530JZ | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 500 |
| Load centre | c(mm) | 400 |
| Axle centre to fork face | x(mm) | 104 |
| Wheel base | y(mm) | 777 |
| Service weight with battery | kg | 990 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φxw(mm) | Φ210×70 |
| Bearing wheel size | Φxw(mm) | Φ178×73 |
| Wheels,number front/rear (x =driven) | 1,2 | |
| Track width | b11(mm) | 733 |
| Dimensions | ||
| Height of mast,lowered | h1(mm) | 2060 |
| Free lift | h2(mm) | 0 |
| Lift | h3(mm) | 3000 |
| Height of mast,extended | h4(mm) | 3550 |
| Overall height(With handle | h14(mm) | 1075/1502 |
| Lowered fork height | h13(mm) | 40 |
| Overall length | l1(mm) | 1920 |
| Length to fork face | l2(mm) | 1100 |
| Overall width | b1/b2(mm) | 807/878 |
| Fork dimensions | s/e/l(mm) | 35/100/820 |
| Width of forks | b5(mm) | 210-640 |
| Aisle width with pallet 1000 x1200 across forks | Ast(mm) | 2365 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 2474 |
| Min.Turning radius | Wa(mm | 985 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed,with/without load | (mm/s) | 120/130 |
| Lowering speed,with/without load | (mm/s) | 130/115 |
| Maximum climbing ability,with/without load | (%) | 3/5 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight (±5%) | (kg) | 2×27 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
