Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: E1025J
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
E1025J |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100(V/Ah) |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator 's Ear: |
≤75(dB(A)) |
Type Of Drive Control: |
DC |
Type Of Steering: |
Mechanical Steering |
Model Number: |
E1025J |
Load Capacity: |
1000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor, 60 Minute Rating: |
0.75kw |
Lift Motor Rating At S3 15%: |
2.2kw |
Battery Voltage/rated Capacity: |
2×12/100(V/Ah) |
Battery Weight(±5%): |
2×27kg |
Noise Level At Operator 's Ear: |
≤75(dB(A)) |
Type Of Drive Control: |
DC |
Type Of Steering: |
Mechanical Steering |
Electric Balance Forklift E1016J&E1020J&E1025J&E10...

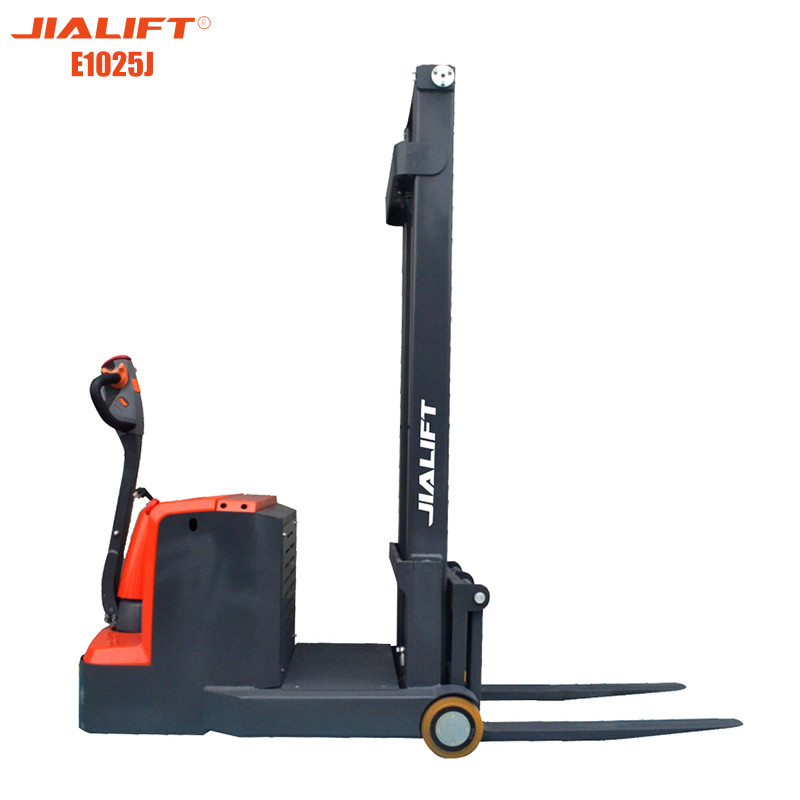

Electric Counterbanlanced Stacker(Pedestrian) E1025J Rated load capacity 1000kg Lifting height 2500mm Electric
Product Features
1.Small size,light weight,suitable for narrow channels,
with high lifting,high load,small turning radius andother characteristics;
2.Standard emergency stop switch,when the vehicle is ina dangerous state,press the emergency stop switchcan cut off the power supply,the vehicle stops running,to protect the safety of the operator and equipment;
3.A groove is arranged above the main car body,whichnot only increases the beauty of the vehicle,but alsofacilitates the operator to temporarily place small workitems;
4.Wide field of vision frame design,so that the operatorhas a wide field of vision,operation efficiency andsafety performance can be improved;
5.Large capacity maintenance-free battery,built-incharger,convenient for customers to use;
6.The front baffle is easy to disassemble,and the battery
replacement is simple and quick;
| Characteristics | ||
| Model | E1025J | |
| Power unit | Electric | |
| Operation | Pedestrian propelled | |
| Rated traction weight | Q(kg) | 1000 |
| Load centre | c(mm) | 400 |
| Axle centre to fork face | x(mm) | 101 |
| Wheel base | y(mm) | 1000 |
| Service weight with battery | kg | 1420 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φxw(mm) | Φ210×70 |
| Bearing wheel size | Φxw(mm) | Φ178×73 |
| Wheels,number front/rear (x =driven) | 1x/2 | |
| Track width | b10(mm) | 0 |
| Track width | b11(mm) | 803 |
| Dimensions | ||
| Height of mast,lowered | h1(mm) | 1803 |
| Free lift | h2(mm) | 0 |
| Lift | h3(mm) | 2500 |
| Height of mast,extended | h4(mm) | 3033 |
| Overall height(With handle | h14(mm) | 730/1165 |
| lowered hength | h13(mm) | 40 |
| Overall length | l1(mm) | 2086 |
| Length to fork face | l2(mm) | 1236 |
| Overall width | b1/b2 (mm) | 878 |
| Fork dimensions | s/e/l (mm) | 35/100/820 |
| Width of forks | b5 (mm) | 220-640 |
| Min.Ground clearance | m2 (mm) | 60 |
| Aisle width with pallet 1000 x 1200 across forks | Ast(mm) | 2635 |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 2742 |
| Min.Tuming radius | Wa(mm) | 1175 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed,with/without load | (mm/s) | 95/160 |
| Lowering speed,with/without load | (mm/s) | 125/98 |
| Maximum climbing ability,with/without load | (%) | 5/10 |
| Service brake | Electromagnetic Brake | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight (±5%) | (kg) | 2×27 |
| Other | ||
| Type of drive control | DC | |
| Noise level at operator 's ear | (dB(A)) | ≤75 |
| Type of steering | Mechanical Steering |
