Zhejiang Jialift Warehouse Equipment Co., Ltd. leoforklifts@gmail.com 86--15618055399
Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: FB30
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number:: |
FB30 |
Load Capacity:: |
3000kg |
Battery:: |
Li-lon |
Drive Motor: |
10kw |
Battery Voltage/rated Capacity:: |
76.8V/350AH（STD） |
Lift Motor: |
12kw |
Model Number:: |
FB30 |
Load Capacity:: |
3000kg |
Battery:: |
Li-lon |
Drive Motor: |
10kw |
Battery Voltage/rated Capacity:: |
76.8V/350AH（STD） |
Lift Motor: |
12kw |

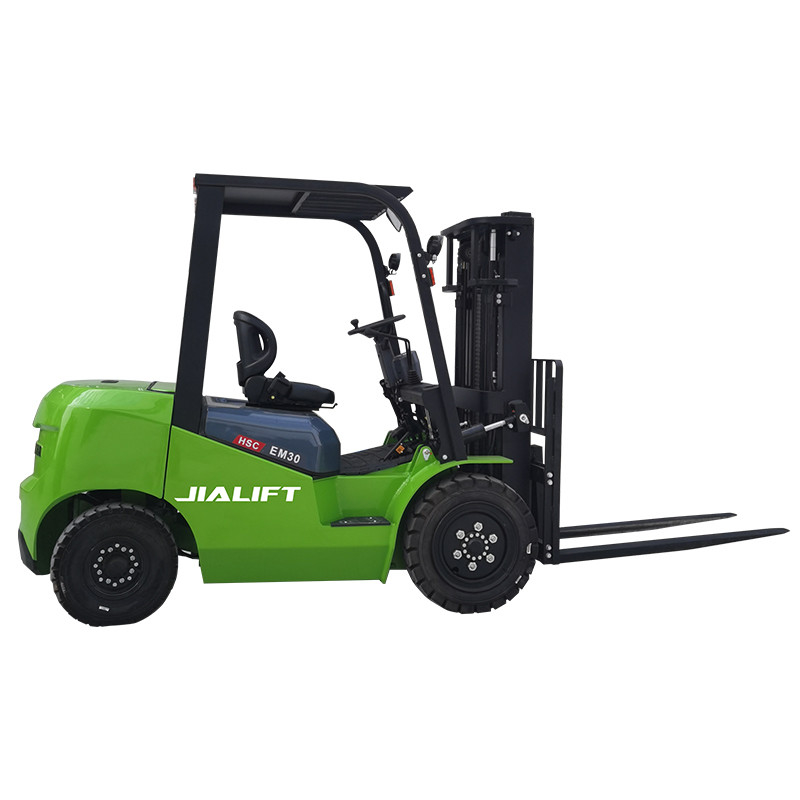

Electric Counterbalance Forklift Lift 3000kg Lifting Height 3m
| Model | FB30-SY |
| Power Type | Li-lon |
| Rated Load Capacity | 3000 |
| Load Centre | 500 |
| Rated Lift Height | 3000 |
| Free Lift Height | 125 |
| Fork Size (L×W×T) | 1070×122×45 |
| Mast Tilt Angle (F/R, α°/β°) | 6°/12° |
| Fork Overhang (Wheel Center to Fork Face) | 467 |
| Rear Overhang | 530 |
| Ground Clearance (Bottom of Mast) | 125 |
| Length to Face of Fork (Without Fork) | 2697 |
| Overall Width | 1220 |
| Mast Lowered Height | 2115 |
| Mast Extended Height (With Backrest) | 4213 |
| Overhead Guard Height | 2235 |
| Turning Radius (Outside) | 2450 |
| Min.Aisle width for pallets | 4120 |
| Travel Speed (No Load) | 11/12 |
| Lifting Speed (Full Load) | 250/360 |
| Lowering Speed(Full Load/No Load) | No Load≥300 Full Load≤600 |
| Max.Gradeability (Full Load) | 15 |
| Tyre (Front x 2) | 28×9-15-12PR |
| Tyre (Rear x 2) | 6.50-10-10PR |
| Front Tread | 1000 |
| Rear Tread | 980 |
| Wheelbase | 1700 |
| Total Weight | 4200 |
| Front Axle Weight Distribution (Full Load) | 6390 |
| Rear Axle Weight Distribution (Full Load) | 810 |
| Front Axle Weight Distribution (No Load) | 1670 |
| Rear Axle Weight Distribution (No Load) | 2530 |
| Battery | 76.8V/350AH(STD) |
| Drive Motor | 10 |
| Lift Motor | 12 |
| Operating Pressure (For Attachments) | 20.5 |
