Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: TS60
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Tray or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
TS60 |
Load Capacity: |
6000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
5kw |
Battery Voltage/Battery Capacity: |
48/240V/Ah |
Battery Weight (±5%): |
430kg |
Type Of Steering: |
Electric |
Noiselevel At Operator 's Ear: |
≤70dB(A) |
Model Number: |
TS60 |
Load Capacity: |
6000kg |
Battery: |
Lead Acid/Li-lon |
Dye Motor: |
5kw |
Battery Voltage/Battery Capacity: |
48/240V/Ah |
Battery Weight (±5%): |
430kg |
Type Of Steering: |
Electric |
Noiselevel At Operator 's Ear: |
≤70dB(A) |

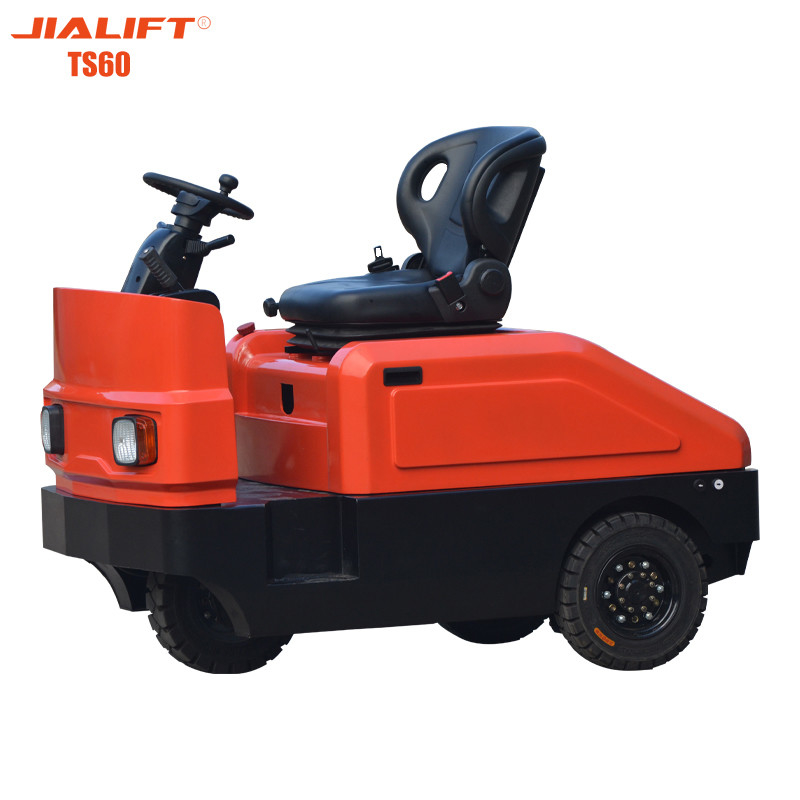

Electric Tow tractor(Seated) TS60 Hated traction weight 6000kg Max.pulling power 5500N Electric Tow Tractor
Electric Tow Tractor TS40&TS60.pdf
Electric Tow tractor(Seated) Hated traction weight 6000kg Max.pulling power 5500N
Product Features
1.The whole vehicle design is compact,thetransmission is stable,the shape is small,and theturn radius is small;
2.The electric switch on the left side of the vehiclebody has a dot dynamic function,and theoperating efficiency is high;
3.The back cover is convenient to disassemble,andthe components are convenient to repair andreplacement of components;
4.The new communication power system providespowerful power,more accurate speed controlperformance and various regenerative functions,more operation Safe and reliable;
5.Side pull battery box design,easy to replace thebattery,convenient for continuous operation.
| Characteristics | ||
| Model | TS60 | |
| Power unit | Electric | |
| Operation | Seated on | |
| Hated traction weight | Q(kg) | 6000 |
| Wheel base | y(mm) | 940 |
| Service weight with battery | kg | 1000 |
| Wheels/Tyres | ||
| Wheels type | Solid | |
| Driving wheel size | (mm) | 4.00-8 |
| Bearing wheel size | (mm) | 4.00-8 |
| Wheels,number front/rear (x=driven) | 1/2x | |
| Track width | b11(mm) | 871 |
| Dimensions | ||
| The vehicle height | h6(mm) | 1395 |
| Seat height | h7(mm) | 950 |
| Coupler height | h10(mm | 300/350/400 |
| Suspension from | l5(mm) | 441 |
| Overall length | l1(mm) | 1746 |
| Overall width | b1/b2(mm) | 985 |
| Min.Ground clearance | m2(mm) | 138 |
| Min.Turning radius | Wa(mm) | 1575 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 7/12 |
| Max.pulling power | N | 5500 |
| Gradeability.laden/unladen | 0 | 5/10 |
| Brake | Mechanical+Hydraulic | |
| Drive | ||
| Dye motor | kW | 5 |
| Battery voltage/Battery capacity | V/Ah | 48/240 |
| Battery weight (±5%) | kg | 430 |
| Other | ||
| Type of drive control | AC | |
| Type of steering | Electric | |
| Noiselevel at operator 's ear | dB(A) | ≤70 |
| Traction coupling according to DIN15170 type | Bolt |
