1500 Kg Electric Pallet Truck Rated Traction Lifting Height 200mm

Name: 1500 Kg Electric Pallet Truck Rated Traction Lifting Height 200mm
Brand: Zhejiang Jialift Warehouse Equipment Co., Ltd.
SKU: SL15GI
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JIALIFT

Certification: CE，UL

Model Number: SL15GI

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Pallet or container

Delivery Time: 3 days

Payment Terms: L/C, T/T

Supply Ability: 200 units per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Electric pallet truck Lifting height 200mm, 1500 kg  pallet truck, 1500 kg electric pallet truck


Model Number:	SL15GI	Load Capacity:	1500kg
Battery:	Lead Acid/Li-lon	Drive Motor Power:	0.75kw
Lifting Motor Power:	0.8kw	Battery Voltage/capacity:	2*12/75 V/Ah
Battery Weight (±5%):	40kg	Drive Control Type:	DC
Noise Level:	≤70(dB(A))	Steering Type:	Mechanical Steering

Model Number:	SL15GI
Load Capacity:	1500kg
Battery:	Lead Acid/Li-lon
Drive Motor Power:	0.75kw
Lifting Motor Power:	0.8kw
Battery Voltage/capacity:	2*12/75 V/Ah
Battery Weight (±5%):	40kg
Drive Control Type:	DC
Noise Level:	≤70(dB(A))
Steering Type:	Mechanical Steering

Product Description

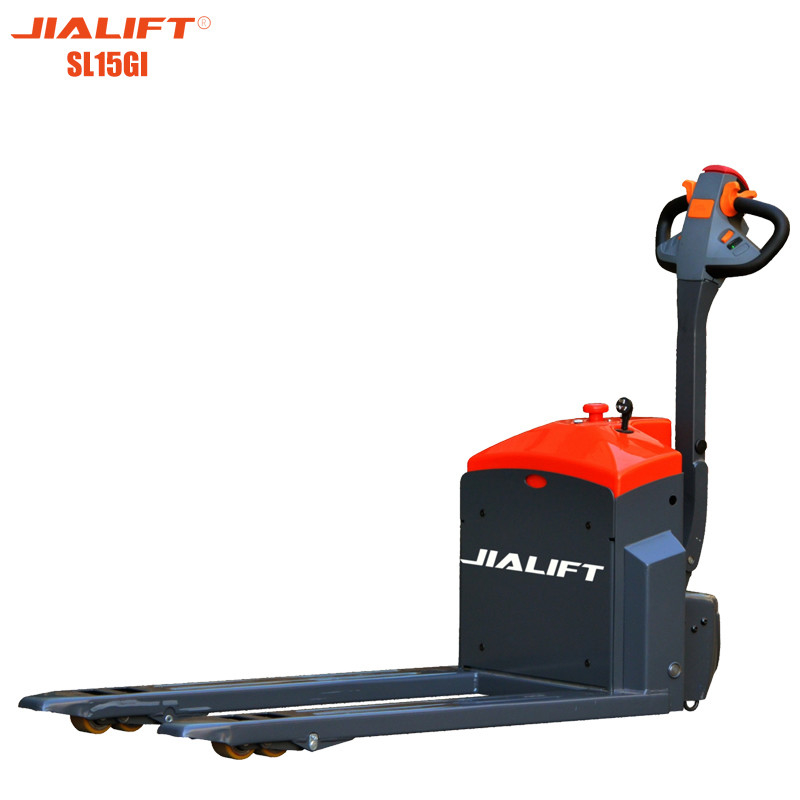

Electric pallet truck(Pedestrian) SL15GI Rated traction weight 1500kg Lifting height 200mm

Electric Pallet Truck SL15GI.pdf

Electric pallet truck(Pedestrian) Rated traction weight 1500kg Lifting height 200mm

Product Features
1.The whole vehicle is small,and the turning radiuscan be handled in a small space.
2.The included entry and exit roller guarantee thatthe vehicle can easily enter the double-sidedtray.
3.Rugged metal cover protects the motor andwheels,but also reliably protects the operator'sfoot to improve safety.
4.Built-in charger provides convenience tocustomers.
5.Adopt multi-function import control systems,make operational and maintenance simple andconvenient,improve the stability of the vehicle.
6.Improve the line function layout and reduce thefault rate.

Characteristics
Model		SL15GI
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	1500
Load centre	c(mm)	600
Axle centre to fork face	x(mm)	944
Wheel base	y(mm)	1262
Service weight with battery	kg	193/200
Wheels/Tyres
Wheels type		PU
Driving wheel size	Φ×w(mm)	Ф210x70
Bearing wheel size	Φ×w(mm)	Ф80x60
Wheels,numberfront/rear(x= driven)		4/1x
Track width	b11(mm)	410/535
Dimensions
Lift	h3 (mm)	200
Overall height(With handle	h14 (mm)	612/1195
lowered hength	h13 (mm)	85
Overall length	l1(mm)	1628
Length to fork face	l2(mm)	478
Overall width	b1/ b2 (mm)	560/685
Fork dimensions	s/e/l(mm)	50/150/1150
Width of forks	b5 (mm)	560/685
Min.Ground clearance	m2 (mm)	35
Aisle width with pallet 1000x1200 across forks	Ast(mm)	1831
Aisle width with pallet 800 x 1200 along forks	Ast (mm)	1881
Min.Turning radius	Wa (mm)	1425
Performance
Travel speed,laden/unladen	(km/h)	4.2/4.5
Lifting speed, with/without load	(mm/s)	22/25
Lowering speed, with/withoutload	(mm/s)	38/28
Maximum climbing ability, with/without load	(%)	6/10
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	(kw)	0.75
Lift motor rating at $3 15%	(kw)	0.8
Battery voltage/rated capacity	(V/Ah)	2×12/75
Battery weight(+ 5%)	(kg)	40
Other
Type of drive control		DC
Noise level at operator 's ear	(dB(A))	≤70
Type of steering		Mechanical

1500 Kg Electric Pallet Truck Rated Traction Lifting Height 200mm 0
