Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SM20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SM20 |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
0.75kw |
Battery Voltage/rated Capacity: |
2*12/32V/Ah |
Battery Weight (±5%): |
10.1*2kg |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |
Model Number: |
SM20 |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
0.75kw |
Battery Voltage/rated Capacity: |
2*12/32V/Ah |
Battery Weight (±5%): |
10.1*2kg |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |

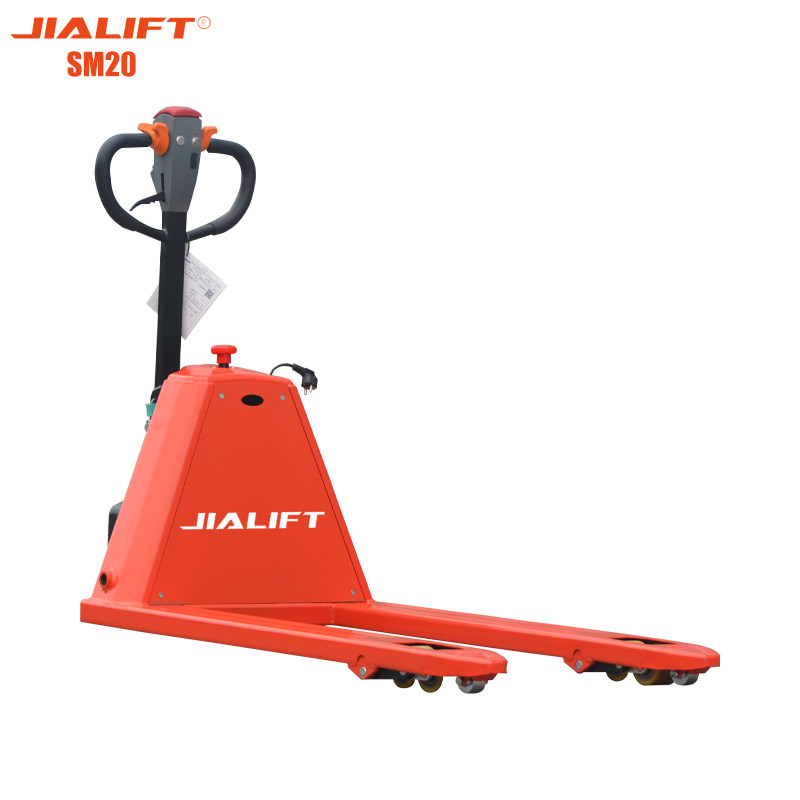

Semi-electric pallet truck(Pedestrian) SM20 Rated traction weight 2000kg Lifting height 200mm Electric Pallet Hauler
Electric Pallet Truck SM20.pdf
Semi-electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm
Product Features
1.The whole vehicle is simple,dexterous,reliable and
easy to operate.Compact structure,small turningradius.Small weight,can be used in containers.Lownoise,high performance;
2.With power off brake function,the handle is releasedor pressed to the bottom,the vehicle immediatelypower off brake,when the vehicle is out of control oron the ramp,this function is especially practical,more safe and reliable;
3.Standard emergency stop switch,when the vehicle isin danger,press the emergency stop switch can cutoff the power supply,the vehicle stops running,toprotect the operator and equipment safety;
4.Standard built-in charger for easy charging;
5.The front baffle is easy to disassemble,and thebattery replacement is simple and quick;
6.Reverse anti-collision switch,dual guarantee ofelectromagnetic braking and motor braking,fullyconsider the operator's driving safety.
| Characteristics | |||
| Model | SM20 | ||
| Power unit | Electric | ||
| Operation | Pedestrian | ||
| Rated traction weight | Q(kg) | 2000 | |
| Load centre | c(mm) | 600 | |
| Axle centre to fork face | x(mm) | 944 | |
| Wheel base | y(mm) | 1243 | |
| Service weight with battery | kg | 155 | |
| Wheels/Tyres | |||
| Wheels type | PU | ||
| Driving wheel size | Φ×w(mm) | Φ210×70 | |
| Bearing wheel size | Φ×w(mm) | Φ80×60 | |
| Wheels,number front/rear (x =driven) | 1x/4 | ||
| Track width | b11(mm) | 400/535 | |
| Dimensions | |||
| Lift | h3 (mm) | 200 | |
| Overall height(With handle | h14(mm) | 720/1090 | |
| Fork Height,Lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 1620 | |
| Length to fork face | l2(mm) | 470 | |
| Overall width | b1/b2(mm) | 550/685 | |
| Fork dimensions | s/e/l(mm) | 50/150/1150 | |
| Width of forks | b5(mm) | 550/685 | |
| Min.Ground clearance | m2(mm) | 35 | |
| Aisle width with pallet 1000x 1200 across forks | Ast(mm) | 1825 | |
| Aisle width with pallet 800 x 1200 along forks | Ast(mm) | 1875 | |
| Min.Turning radius | Wa(mm) | 1415 | |
| Performance | |||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 | |
| Maximum climbing ability,with/without load | (%) | 3/10 | |
| Service brake | Electromagnetic | ||
| Drive | |||
| Drive motor,60 minute rating | (kW) | 0.75 | |
| Battery voltage/rated capacity | (V/Ah) | 2*12/32 | |
| Battery weight (±5%) | (kg) | 10.1*2 | |
| Other | |||
| Type of drive control | DC | ||
| Noise level at operator 's ear | (dB(A)) | ≤70 | |
| Type of steering | Mechanical | ||
