Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SL20GE
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SL20GE |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
1.3kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Drive Control Type: |
AC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |
Model Number: |
SL20GE |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
1.3kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Drive Control Type: |
AC |
Noise Level: |
≤70(dB(A)) |
Steering Type: |
Mechanical Steering |

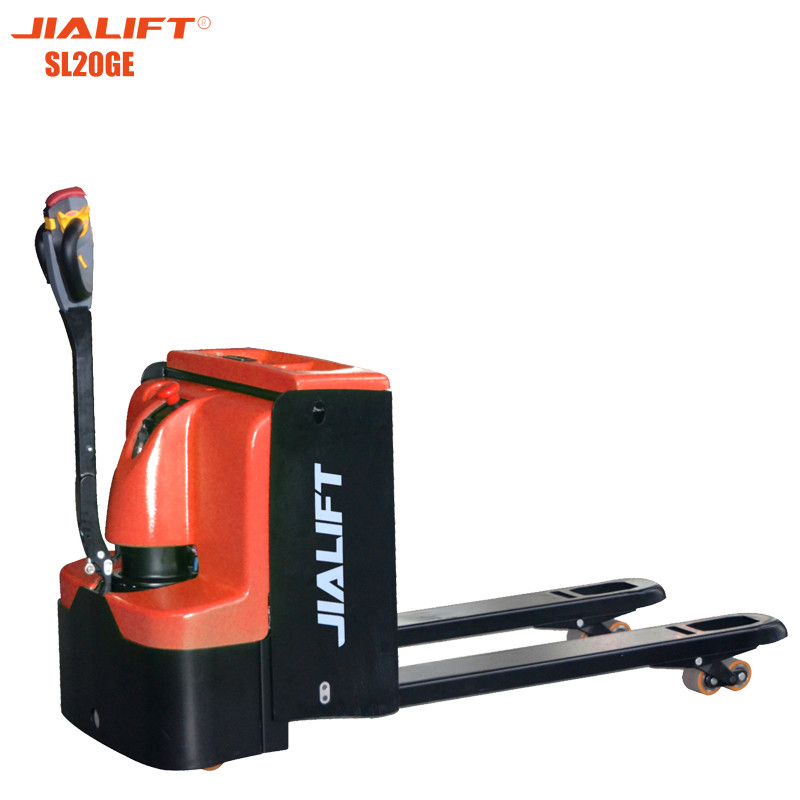

Electric pallet truck(Pedestrian) SL20GE Rated traction weight 2000kg Lifting height 200mm Electric
Electric Pallet Truck SL20GE.pdf
Electric pallet truck(Pedestrian) Rated traction weight 2000kg Lifting height 200mm
Product Features
1.Imported AC controller ,Germany ZF verticalgearbox;
2.Strong effective AC drive systems offer superioracceleration performance,improve job efficiency,and save energy;
3.Unique long handle operation,easy and flexible;
4.The balance wheel on both sides ensures higherstability of the vehicle and prevents the groundfrom being damaged;
5.The battery case cover and mask providegrooves,placed tools,water cups and other items,more human.
| Characteristics | ||
| Model | SL20GE | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 962 |
| Wheel base | y(mm) | 1388 |
| Service weight with battery | kg | 520 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ230×75 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels(dimensions) | Φ×w(mm) | Φ100×40 |
| Wheels,number front/rear (x =driven) | 1x+2/4 | |
| Track width | b11(mm) | 390/525 |
| Dimensions | ||
| Lift | h3(mm) | 200 |
| Overall height(With handle) | h14(mm) | 825/1278 |
| Minimum height of cargo fork | h13(mm) | 85 |
| Overall length | l1(mm) | 1742 |
| Length to fork face | l2(mm) | 592 |
| Overall width | b1/b2(mm) | 700 |
| Fork dimensions | s/e/l(mm) | 50/160/1150 |
| Width of forks | b5(mm) | 550/685 |
| Min.Ground clearance | m2(mm) | 35 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 1944 |
| Aisle width with pallet 800 x1200 along forks | Ast(mm) | 1994 |
| Min.Turning radius | Wa(mm) | 1556 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 4.2/4.5 |
| Lifting speed,with/without load | (mm/s) | 21/27 |
| Lowering speed,with/without load | (mm/s) | 38/38 |
| Maximum climbing ability,with/without load | (%) | 8/15 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.3 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 190 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤70 |
| Type of steering | Mechanical |
