Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SL20ZD
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SL20ZD |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
1.5kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
24/180V/Ah |
Battery Weight (±5%): |
170kg |
Noise Level: |
≤75(dB(A)) |
Model Number: |
SL20ZD |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
1.5kw |
Lifting Motor Power: |
0.8kw |
Battery Voltage/rated Capacity: |
24/180V/Ah |
Battery Weight (±5%): |
170kg |
Noise Level: |
≤75(dB(A)) |

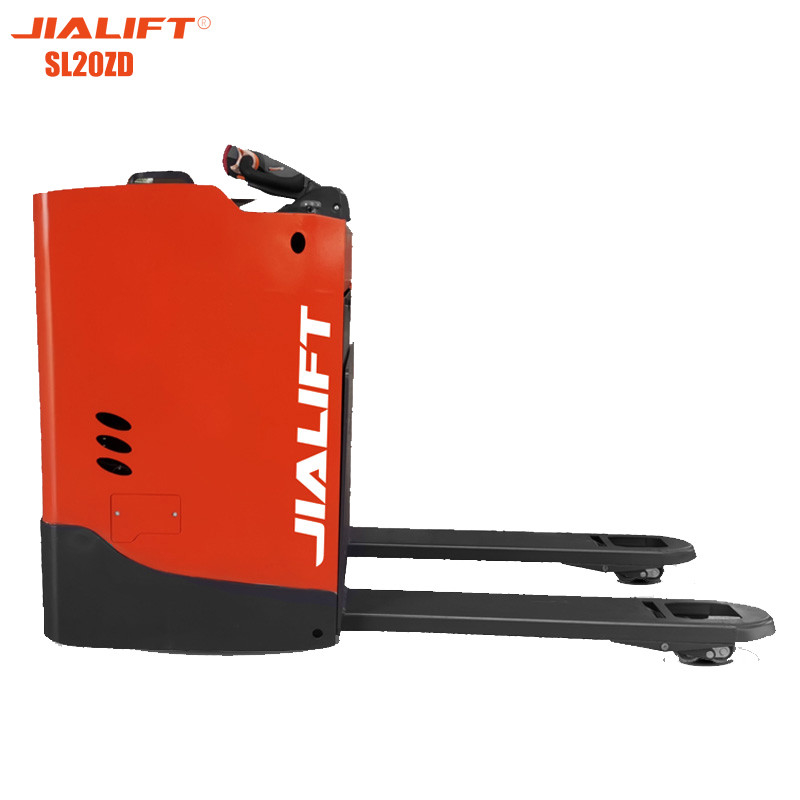

Electric pallet truck(Seated on) SL20ZD Rated traction weight 2000kg Lifting height 120mm
Electric Pallet Truck SL20ZD.pdf
Electric pallet truck(Seated on) Rated traction weight 2000kg Lifting height 120mm
Product Features
1.Efficient battery management, quick batteryreplacementthrough side battery replacemen;
2.Closed semi-enclosed frame can effectivelyprotect the driver's body;
3.The lateral driving position provides the best all-round view;
4.The upholstered backrest makes handling goodscomfortable and without fatigue;
5.Drive standard electronic power steering system,steering more easily, more flexible and accuratecontrol, reduce thelabor intensity of the operator;
6.Pedal-mounted safety switch preventsmisoperation when walking;
7.Two operation modes are provided: whenstanding up, the pedal equipped with shockabsorbing pad can greatly reduce the impact; Softback pads provide better support when sittingdown.
| Characteristics | ||
| Model | SL20ZD | |
| Power unit | Electric | |
| Operation | Seated on | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 910 |
| Wheel base | y(mm) | 1480 |
| Service weight with battery | kg | 810 |
| Wheels/Tyres | ||
| Wheels type | polyurethane | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ80×70 |
| additional wheels(dimensions) | Φ×w(mm) | Φ100×40 |
| Wheels,number front/rear (x =driven) | 1,1/4 | |
| Track width | b11(mm) | 515/370 |
| Dimensions | ||
| Lift | h3(mm | 120 |
| Overall height(With handle) | h14(mm) | 1063 |
| Minimum height of cargo fork | h13(mm | 86 |
| Overall length | l1(mm) | 1946 |
| Length to fork face | l2(mm) | 796 |
| Overall width | b1/b2(mm) | 800 |
| Fork dimensions | s/e/l(mm) | 50/170/1150 |
| Width of forks | b5(mm) | 685/540 |
| Min.Ground clearance | m2(mm) | 36 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2150 |
| Aisle width with pallet 800 x1200 along forks | Ast(mm) | 2200 |
| Min.Turning radius | Wa(mm) | 1755 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed,with/without load | (mm/s) | 35/40 |
| Lowering speed,with/without load | (mm/s) | 50/25 |
| Maximum climbing ability,with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 1.5 |
| Lift motor rating at S3 15% | (kW) | 0.8 |
| Battery voltage/rated capacity | (V/Ah) | 24/180 |
| Battery weight (±5%) | (kg) | 170 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤75 |
