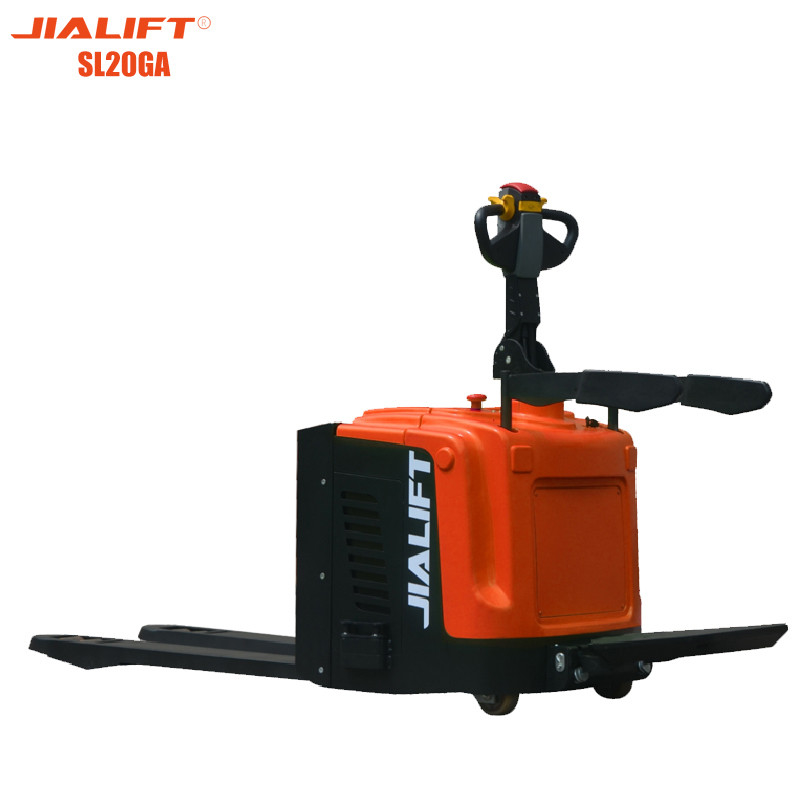

2t Electric Pallet Truck Jack Standing On SL20GA Rated Traction 1.5kw

Name: 2t Electric Pallet Truck Jack Standing On SL20GA Rated Traction 1.5kw
Brand: Zhejiang Jialift Warehouse Equipment Co., Ltd.
SKU: SL20GA
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JIALIFT

Certification: CE，UL

Model Number: SL20GA

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Pallet or container

Delivery Time: 3 days

Payment Terms: L/C, T/T

Supply Ability: 200 units per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Electric pallet truck 1.5kw, 2t pallet jack, 2t electric pallet truck


Model Number:	SL20GA	Load Capacity:	2000kg
Battery:	Lead Acid/Li-lon	Drive Motor Power:	1.5kw
Lifting Motor Power:	0.8kw	Battery Voltage/capacity:	24/210V/Ah
Battery Weight (±5%):	190kg	Noise Level:	≤70(dB(A))

Model Number:	SL20GA
Load Capacity:	2000kg
Battery:	Lead Acid/Li-lon
Drive Motor Power:	1.5kw
Lifting Motor Power:	0.8kw
Battery Voltage/capacity:	24/210V/Ah
Battery Weight (±5%):	190kg
Noise Level:	≤70(dB(A))

Product Description

Electric pallet truck(Standing on) Electric Rated traction weight 2000kg Lift height 200mm Electric Pallet Hauler

Electric Pallet Truck SL20GA&SL25GA&SL30GA.pdf

1.The floating bracket is set in the middle of the drivesystem to ensure the stability of the vehicle operation,and the body is smooth and not tilted.
2.With break-electric brake function,the handle is loosened or pressed to the bottom,and the vehicle
immediately turned off the brake.
3.All-standard standard electronic power steering system,helping the response very keens,the handle manipulation is comfortable.
4.Original imported AC controller provides systematic unparalleled flexibility and accurate speed control.
5.Configure a boost cylinder,fast speed,large power,and low energy consumption,prevent the slippage when
overloading.
6.Standard the battery side pull configuration,replacing the battery more convenient and fast,facilitating continuous operation,greatly improving productivity.

Characteristics
Model		SL20GA
Power unit		Electric
Operation		Standing on
Rated traction weight	Q(kg)	2000
Load centre	c(mm)	600
Axle centre to fork face	x(mm)	1039
Wheel base	y(mm)	1560
Service weight with battery	kg	810
Wheels/Tyres
Wheels type		PU
Driving wheel size	Φ×w(mm)	Φ250×75
Bearing wheel size	Φ×w(mm)	Φ80×80
Additional wheels(dimensions)	Φ×w(mm)	Φ115×55
Wheels,number front/rear (x =driven)		1x+2/4
Track width	b10(mm)	580
Track width	b11(mm)	355/500
Dimensions
Lift	h3(mm)	200
Overall height(With handle	h4(mm)	1150/1455
lowered hength	h14(mm)	85
Overall length	h13(mm)	1910(1985)
Length to fork face	11(mm)	756
Overall width	12(mm)	808
Fork dimensions	s/e/l(mm)	50/185/1150(1220)
Width of forks	b5(mm)	540/685
Min.Ground clearance	m2(mm)	25
Aisle width with pallet 1000x1200 across forks	Ast (mm)	2180
Aisle width with pallet 800x 1200 along forks	Ast(mm)	2380
Min.Turning radius	Wa(mm	1746
Performance
Travel speed,laden/unladen	(km/h)	5.2/5.5
Lifting speed,with/without load	(mm/s)	22/28
Lowering speed,with/without load	(mm/s)	30/20
Maximum climbing ability,with/without load	(%)	6/8
Service brake		Electromagnetic
Drive
Drive motor,60 minute rating	(kW)	1.5
Lift motor rating at S3 15%	(kW)	0.8
Battery voltage/rated capacity	(V/Ah)	24/210
Battery weight (±5%)	(kg)	190
Other
Type of drive control		AC
Noise level at operator's ear	(dB(A))	≤70
Type of steering		Electric

2t Electric Pallet Truck Jack Standing On SL20GA Rated Traction 1.5kw 0

2t Electric Pallet Truck Jack Standing On SL20GA Rated Traction 1.5kw 1

2t Electric Pallet Truck Jack Standing On SL20GA Rated Traction 1.5kw 2
