Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: SL25GA
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Payment Terms: L/C, T/T
Supply Ability: 200 units per day
Model Number: |
SL25GA |
Load Capacity: |
2500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
2.5kw |
Lifting Motor Power: |
2.2kw |
Battery Voltage/capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Noise Level: |
≤70(dB(A)) |
Model Number: |
SL25GA |
Load Capacity: |
2500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor Power: |
2.5kw |
Lifting Motor Power: |
2.2kw |
Battery Voltage/capacity: |
24/210V/Ah |
Battery Weight (±5%): |
190kg |
Noise Level: |
≤70(dB(A)) |

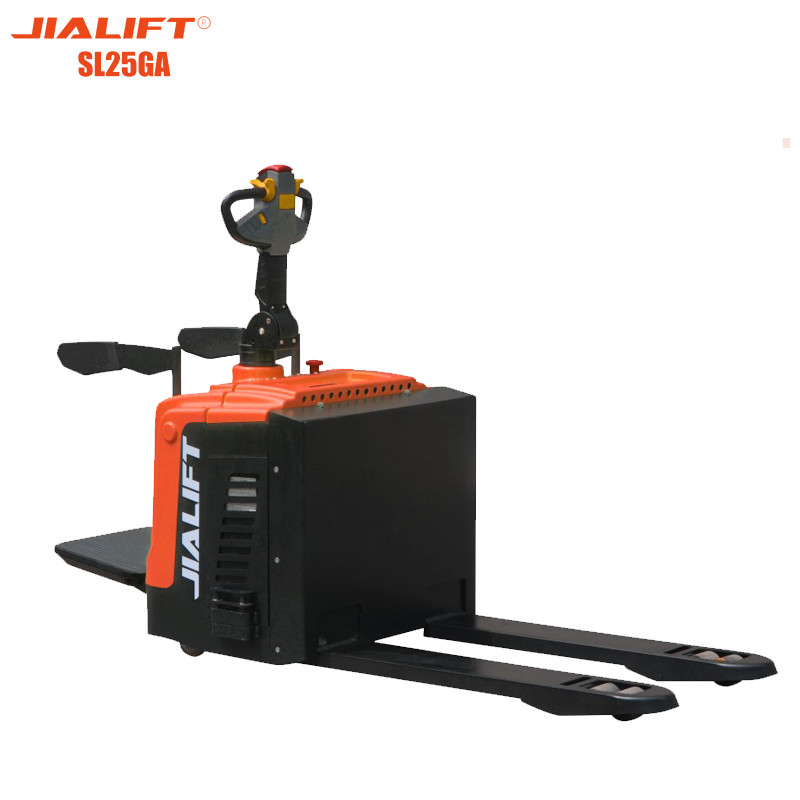

Electric pallet truck(Standing on) SL25GA Rated traction weight 2500kg Lift height 200mm Electric Pallet Hauler
Electric Pallet Truck SL20GA&SL25GA&SL30GA.pdf
Electric pallet truck(Standing on) Electric Rated traction weight 2500kg Lift height 200mm Electric Pallet Hauler
1.The floating bracket is set in the middle of the drivesystem to ensure the stability of the vehicle operation,and the body is smooth and not tilted.
2.With break-electric brake function,the handle is loosened or pressed to the bottom,and the vehicle
immediately turned off the brake.
3.All-standard standard electronic power steering system,helping the response very keens,the handle manipulation is comfortable.
4.Original imported AC controller provides systematic unparalleled flexibility and accurate speed control.
5.Configure a boost cylinder,fast speed,large power,and low energy consumption,prevent the slippage when
overloading.
6.Standard the battery side pull configuration,replacing the battery more convenient and fast,facilitating continuous operation,greatly improving productivity.
| Characteristics | ||
| Model | SL25GA | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 2500 |
| Load centre | c(mm) | 600 |
| Axle centre to fork face | x(mm) | 1039 |
| Wheel base | y(mm) | 1560 |
| Service weight with battery | kg | 830 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×75 |
| Bearing wheel size | Φ×w(mm) | Φ80×80 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ115×55 |
| Wheels,number front/rear (x =driven) | 1x+2/4 | |
| Track width | b10(mm) | 580 |
| Track width | b11(mm) | 355/500 |
| Dimensions | ||
| Lift | h3(mm) | 200 |
| Overall height(With handle | h4(mm) | 1150/1455 |
| lowered hength | h14(mm) | 85 |
| Overall length | h13(mm) | 1910(1985) |
| Length to fork face | 11(mm) | 756 |
| Overall width | 12(mm) | 808 |
| Fork dimensions | s/e/l(mm) | 50/185/1150(1220) |
| Width of forks | b5(mm) | 540/685 |
| Min.Ground clearance | m2(mm) | 25 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 2180 |
| Aisle width with pallet 800x 1200 along forks | Ast(mm) | 2380 |
| Min.Turning radius | Wa(mm | 1746 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed,with/without load | (mm/s) | 18/20 |
| Lowering speed,with/without load | (mm/s) | 32/18 |
| Maximum climbing ability,with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 2.5 |
| Lift motor rating at S3 15% | (kW) | 2.2 |
| Battery voltage/rated capacity | (V/Ah) | 24/210 |
| Battery weight (±5%) | (kg) | 190 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator's ear | (dB(A)) | ≤70 |
| Type of steering | Electric |
