Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: Q1572GB
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
Q1572GB |
Load Capacity: |
1500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
6kw |
Lift Motor Rating At S3 15%: |
7.7kw |
Battery Voltage/rated Capacity: |
48/420V/Ah |
Battery Weight (±5%): |
700kg |
Noise Level At Operator 's Ear: |
≤70dB(A) |
Model Number: |
Q1572GB |
Load Capacity: |
1500kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
6kw |
Lift Motor Rating At S3 15%: |
7.7kw |
Battery Voltage/rated Capacity: |
48/420V/Ah |
Battery Weight (±5%): |
700kg |
Noise Level At Operator 's Ear: |
≤70dB(A) |

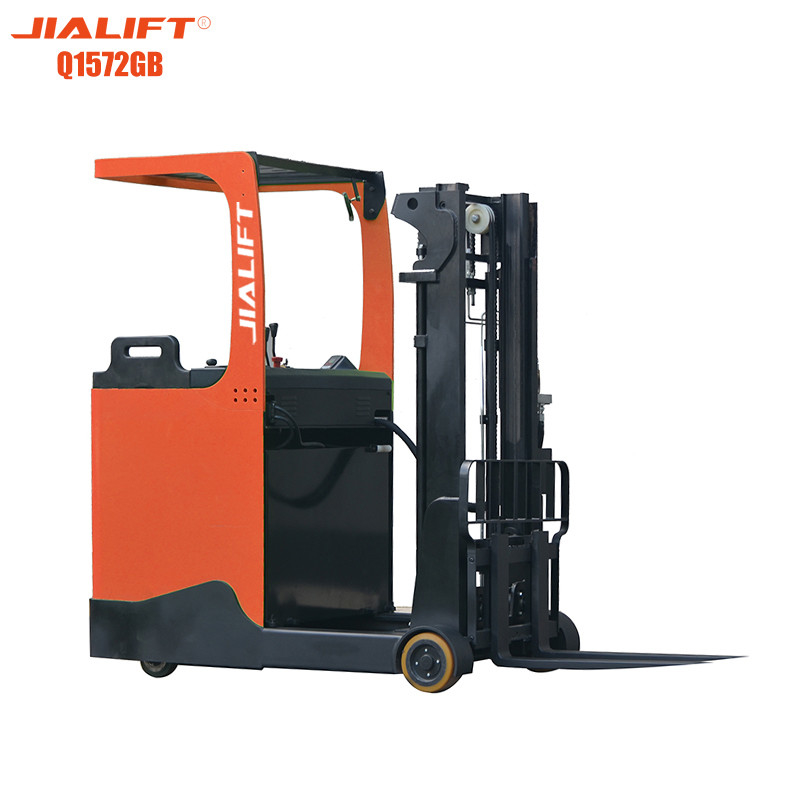

Electric reach stacker(Standing on) Q1572GB Rated traction weight 1500kg Lifting height 7200mm Electric Reach Forklift
Electric Reach Forklift Q1530GB&Q1545GB&Q1572GB.pd...
Electric reach stacker(Standing on) Rated traction weight 1500kg Lifting height 7200mm Electric Reach Forklift
Product Features
1.Controller belt self-diagnostic function,the handheld unitcan be displayed after the controller is coupled to the faultcode,and quickly accurately troubleshoot;
2.The front wheel uses a large wheel design,the vehiclechassis is extracted,the secondary wheel on both sidesof the drive wheel provides a safe aid for the chassis,making the whole vehicle have both strong obstacles,andno stability.More flexible operation;
3.The pedal foot switch plans to control the operation of thevehicle,only after the pedal switch is stepped on,it canoperate the vehicle,and vice versa,the vehicle stopsrunning,the design improves the safety of the wholevehicle;
4.The side of the driving position is equipped with abackrest,and the upper cover is equipped with a cushionof the operator's handler.These two design greatlyimprove the driver's operation comfort;
5.Integrated high-quality forging forks,set the precedingtilting function,hook design,convenient to adjust thewidth to the left and right sides to ensure the accurate stack of the operator.
| Charagteristics | ||
| Model | Q1572GB | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 1500 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 314 |
| Wheel base | y(mm) | 1460 |
| Service welght with battery | kg | 3740 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ343×130 |
| Bearing wheel size | Φ×w(mm) | Φ250×120 |
| Additional wheels(dimensions) | Φ×w(mm) | Φ178×73 |
| Wheels,number front/rear (x=driven) | 1,2/2 | |
| Track width | b10(mm) | 660 |
| Track width | b11(mm) | 1038 |
| Dimensions | ||
| Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 |
| Height of mast,lowered | h1(mm) | 3065 |
| Free lilt | h2(mm) | 2220 |
| Lift | h3(mm) | 7200 |
| Hoight of mast,extended | h4(mm) | 8040 |
| Overall height(With handle | h14 (mm) | 2240 |
| Fork Height,Lowered | h13 (mm) | 35 |
| Overall lengh | l1(mm | 2350 |
| Length tofork face(fork length ) | l2(mm) | 1400 |
| Overall width | b1/b2 (mm) | 1158/1168 |
| Fork dimensions | s/e/l(mm) | 35/100/950 |
| Width of forks | b5(mm) | 200-775 |
| Distance Between Suporrts arms/loading surfaces | b4(mm | 808 |
| Reach distanee | l4(mm) | 570 |
| Min.Ground clearance | m2 (mm) | 56 |
| Aisle width with pallet 1000x1200 across forks | Ast(mm) | 2900 |
| Ais le width with pallet 800x 1200 along forks | Ast (mm) | 2950 |
| Min.Turning radius | Wa(mm) | 1830 |
| Length across wheel arms | l7(mm) | 1940 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 8.5/9 |
| Lifting speed,with/without load | (mm/s) | 120/220 |
| Lowering speed,with/without load | (mnvs) | 220/190 |
| Reach speed,laden/unladen | (mm/s) | 83/81 |
| Maximum climbing ability,with/without load | (%) | 10/15 |
| Service brake | Electromagnatic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 6 |
| Lilt motor rating at S3 15% | (kW) | 7.7 |
| Battery voltage/rated capacity | (V/Ah) | 48/420 |
| Battery weight (±5%) | (kg) | 700 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator"s ear | (dB(A)) | ≤70 |
