Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: Q2060GA
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
Q2060GA |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
2.5kw |
Lift Motor Rating At S3 15%: |
4.5kw |
Battery Voltage/rated Capacity: |
24/280V/Ah |
Battery Weight (±5%): |
275kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |
Model Number: |
Q2060GA |
Load Capacity: |
2000kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
2.5kw |
Lift Motor Rating At S3 15%: |
4.5kw |
Battery Voltage/rated Capacity: |
24/280V/Ah |
Battery Weight (±5%): |
275kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |

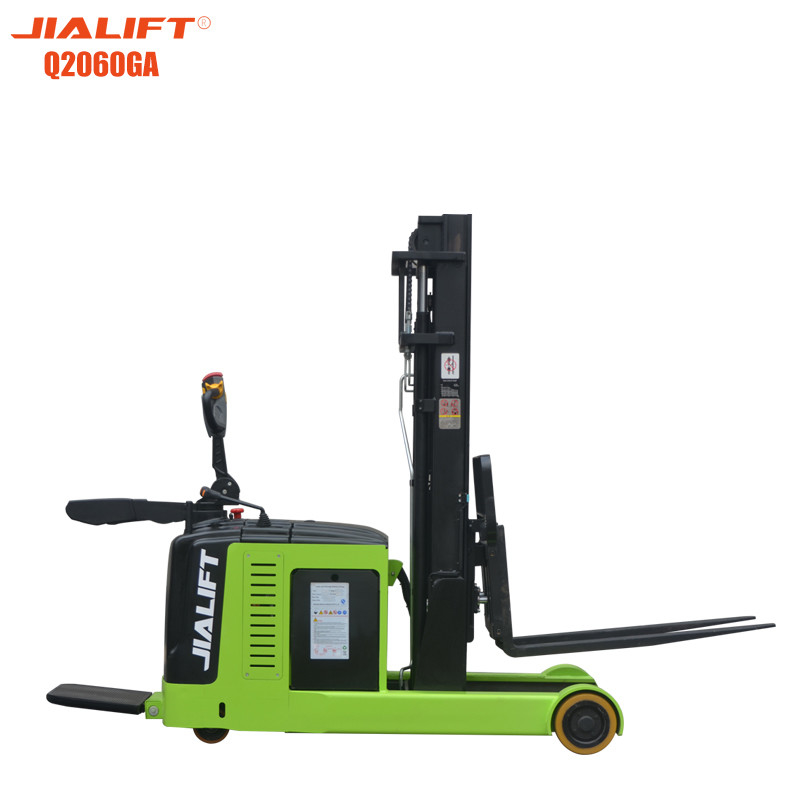

Electric reach stacker(Standing on) Q2060GA Rated traction weight 2000kg Lifting height 6000mm Electric Reach Forklift
Electric Reach Forklift Q2030GA&Q2060GA.pdf
Electric reach stacker(Standing on) Q2060GA Rated traction weight 2000kg Lifting height 6000mm Electric Reach Forklift
Product Features
1.Imported AC controller ,Germany ZF verticalgearbox;
2.With self-diagnostic function,the handheld unit andthe controller can display fault code,and quicklyaccurately troubleshoot;
3.You can choose full-free upgrading,which isconvenient for vehicles to have restriction in thecontainer or other ceiling;
4.The front wheel uses a large wheel design,thevehicle chassis is improved,the secondary wheel onboth sides of the drive wheel provides a safe aid forthe chassis,making the whole vehicle have bothstrong obstacles,and no stability.Operation is moreflexible;
5.Standard the lifting limit function,when the fork israised to the item,the system automatically cuts offthe uplink power supply,smooth parking,effectivelyprevents the occurrence of "tweakstorm"accidents.
| Characteristics | ||
| Model | Q2060GA | |
| Power unit | Electric | |
| Operation | Standing on | |
| Rated traction weight | Q(kg) | 2000 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 324 |
| Wheel base | y(mm) | 1554 |
| Service weight with battery | kg | 3020 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ250×127(PU) |
| Bearing wheel size | Φ×w(mm) | Φ250×120 |
| additional wheels(dimensions) | Φ×w(mm) | Φ149×60 |
| Wheels,number front/rear(x =driven) | 1,4/2 | |
| Track width | b10(mm) | 665 |
| Track width | b11(mm) | 976 |
| Dimensions | ||
| Mast/fork carriage tilt,forward/backward | a/b(°) | 3/5 |
| Height of mast,lowered | h1(mm) | 2690 |
| Free lift | h2 (mm) | 1805 |
| Lift | h3(mm) | 6000 |
| Height of mast,extended | h4(mm) | 6920 |
| Overall height(With handle | h14(mm) | 1075/1502 |
| Lowered fork height | h13(mm | 40 |
| Overall length | l1 (mm) | 2530 |
| Length to fork face | l2 (mm) | 1460 |
| Overall width | b1/b2 (mm) | 940/1100 |
| Fork dimensions | s/e/l(mm) | 40/120/1070 |
| Width of forks | b5(mm) | 240-715 |
| Distance Between Suporrts arms/loading surfaces | b4(mm) | 746 |
| Reach distance | l4(mm) | 500 |
| Min.Ground clearance | m2(mm) | 48 |
| Aisle width with pallet 1000 x1200 across forks | Ast (mm) | 2900 |
| Aisle width with pallet 800x 1200 along forks | Ast (mm) | 2960 |
| Min.Turning radius | Wa(mm) | 1800 |
| Performance | ||
| Travel speed,laden/unladen | (km/h) | 5.2/5.5 |
| Lifting speed,with/without load | (mm/s) | 130/180 |
| Lowering speed,with/without load | (mm/s) | 160/210 |
| Maximum climbing ability,with/without load | (%) | 6/8 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 2.5 |
| Lift motor rating at S3 15% | (kW) | 4.5 |
| Battery voltage/rated capacity | V/Ah | 24/280 |
| Battery weight (±5%) | (kg) | 275 |
| Other | ||
| Type of drive control | AC | |
| Noise level at operator 's ear | (dB(A)) | ≤75 |
