Product Details
Place of Origin: CHINA
Brand Name: JIALIFT
Certification: CE，UL
Model Number: QGB1850X
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Pallet or container
Delivery Time: 3 days
Supply Ability: 200 units per day
Model Number: |
QGB1850X |
Load Capacity: |
1800kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
6kw |
Lift Motor Rating At S3 15%: |
11kw |
Battery Voltage/rated Capacity: |
48/420V/Ah |
Battery Weight (±5%): |
700kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |
Model Number: |
QGB1850X |
Load Capacity: |
1800kg |
Battery: |
Lead Acid/Li-lon |
Drive Motor,60 Minute Rating: |
6kw |
Lift Motor Rating At S3 15%: |
11kw |
Battery Voltage/rated Capacity: |
48/420V/Ah |
Battery Weight (±5%): |
700kg |
Noise Level At Operator 's Ear: |
≤75dB(A) |

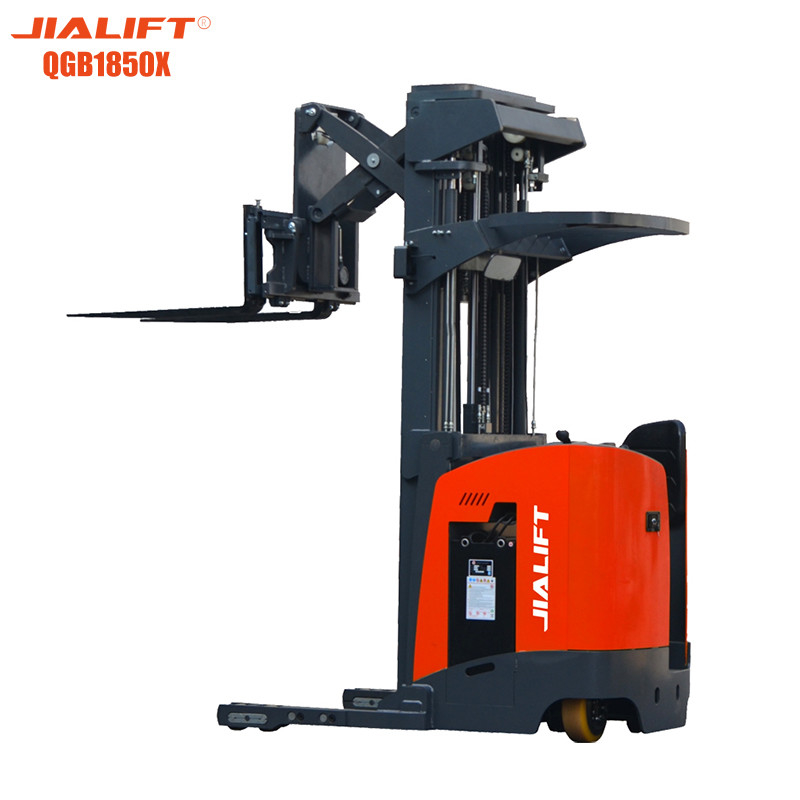

Electric reach truck Retractable forks(Seated on) QGB1850X Rated traction weight 1800kg Lifting height 5000mm
Electric Reach Forklift QGB1850X.pdf
Electric reach truck Retractable forks(Seated on) QGB1850X Rated traction weight 1800kg Lifting height 5000mm
Product Features
1.CURTIS AC controller,high power drive,high frequency,
high efficiency,quiet,stepless speed regulation andreverse braking function.Perfect temperature protectionand compensation function to achieve thermal protectionand stable output;
2.Drive standard electronic power steering system,steering more easy,more flexible and accurate control,reduce the operator's labor intensity,turn automaticspeed limit,driving more safe;
3.The operating platform is equipped with intelligent displayfrequency,which can display the rotation direction androtation Angle of the driving wheel in real time,and alsoreport the forklift failure code;
4.Open battery design,battery can be pulled out from theside,convenient battery exchange and maintenance;
5.Hydraulic system explosion-proof design,even if the oilpipe burst,the door frame will not drop quickly,improvesafety;
6.Select intelligent integrated control handle,easy to operate and comfortable.
| Characteristics | ||
| Model | QGB1850X | |
| Power unit | Electric | |
| Operation | Seated on | |
| Rated traction weight | Q(kg) | 1800 |
| Load centre | c(mm) | 500 |
| Axle centre to fork face | x(mm) | 375 |
| Wheelbase | y(mm) | 1618 |
| Service weight with battery | kg | 3670 |
| Wheels/Tyres | ||
| Wheels type | PU | |
| Driving wheel size | Φ×w(mm) | Φ343×132 |
| Bearing wheel size | Φ×w(mm) | Φ125×82 |
| Wheels,number front/rear (x=driven) | 1x,2/4 | |
| Track width | b10(mm) | 735 |
| Track width | b11(mm) | 1260 |
| Dimensions | ||
| Mast/lork carriage tilt,forward/backward | a/b(°) | 2/4 |
| Height ol mast.lowered | h1(mm) | 2449 |
| Free lift | h2(mm) | 1350 |
| Lift | h3(mm) | 5000 |
| Height of mast,extended | h4(mm) | 6120 |
| Height ot overhead guard (cabin) | h6(mm) | 2386 |
| Fork Height,Lowered | h13(mm) | 50 |
| Overall length | l1(mm) | 2597 |
| Length to fork face | l2(mm) | 1527 |
| Overall width | b1/b2 (mm) | 1120/1390 |
| Fork dimensions | s/e/l(mm) | 40/120/1070 |
| Width of forks | b5(mm) | 890 |
| Distance Between Suporrts arms/loading surfaces | b4(mm) | 1130 |
| Reach distance | l4(mm) | 570 |
| Min.Ground clearance | m2(mm) | 46 |
| Aisle width with pallet 1000x1200 across forks | Ast (mm) | 2970 |
| Aisle width withpallet 800x1200 along forks | Ast (mm) | 3020 |
| Min.Turning radius | Wa(mm) | 1905 |
| Length across wheel arms | l7(mm) | 2074 |
| Performance | ||
| Travel speed,laden/unladen | 9/9.5 | |
| Lifting speed,with/without load | (km/h) | 190/240 |
| Lowering speed,with/without load | (mm/s) | 300/340 |
| Reach speed,laden/unladen | (mm/s) | 100/110 |
| Maximum climbing ability,with/without load | (%) | 6/10 |
| Service brake | Electromagnetic | |
| Drive | ||
| Drive motor,60 minute rating | (kW) | 6 |
| Lift motor rating at S3 15% | (kW) | 11 |
| Battery voltage/rated capacity | (V/Ah) | 48/420 |
| Type of drive control | 700 | |
| Other | ||
| Type of drive control | AC | |
| Noiso level at operator 's ear | (dB(A)) | ≤75 |
